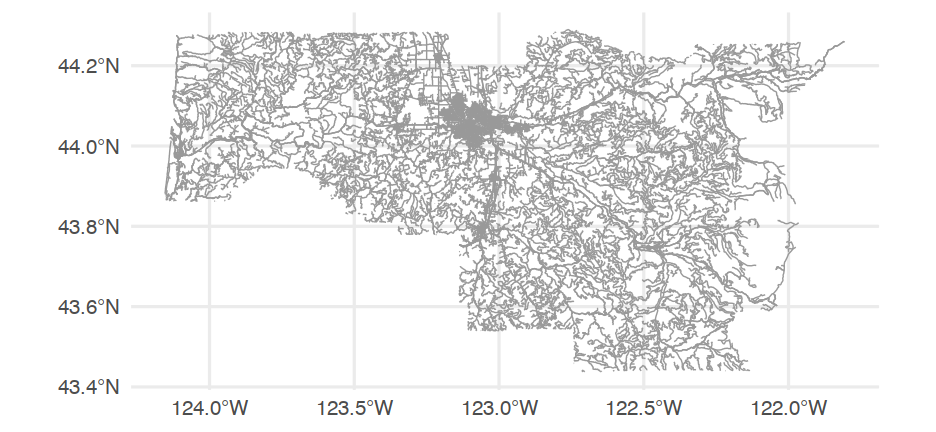

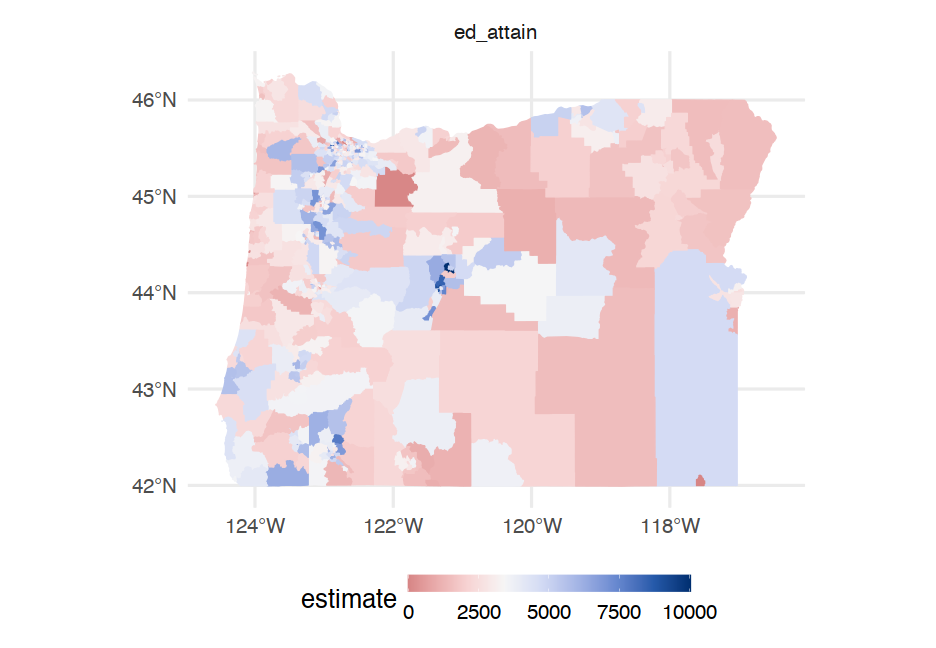

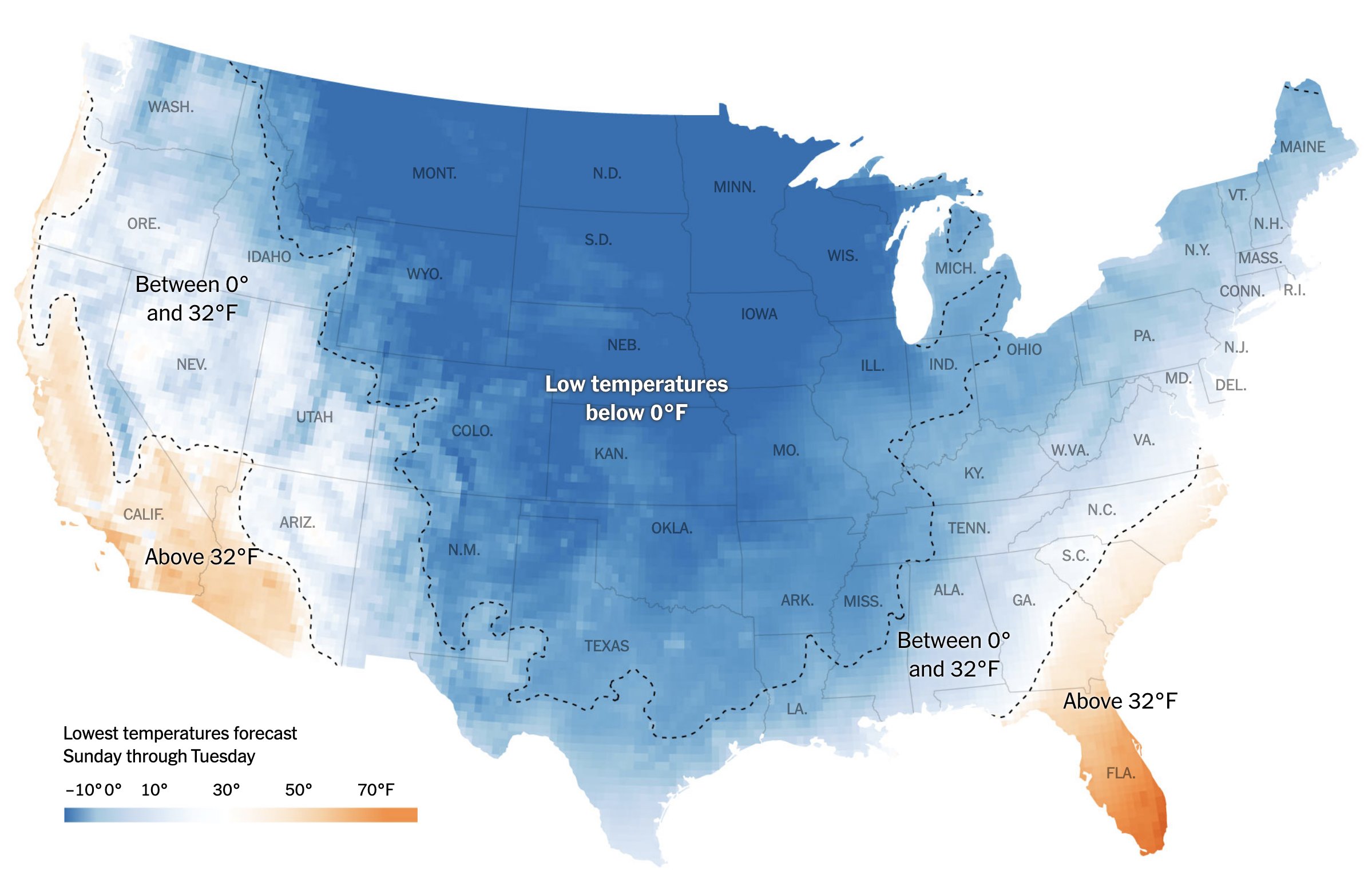

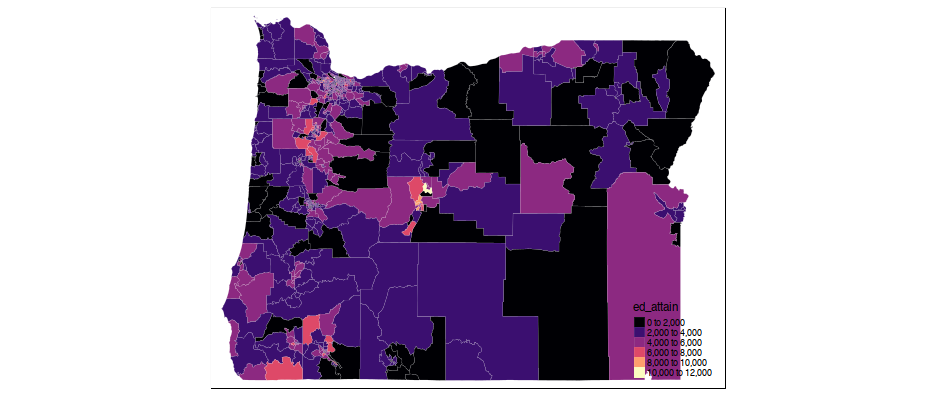

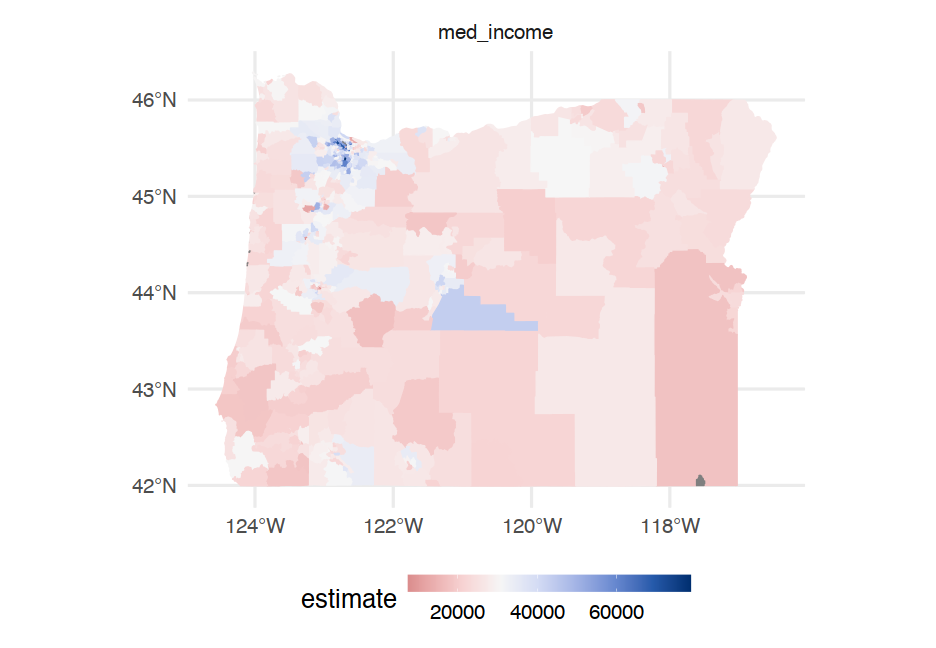

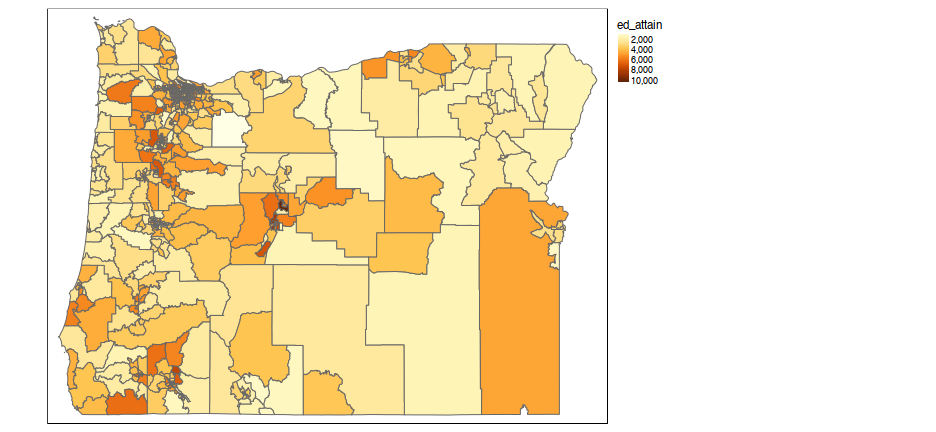

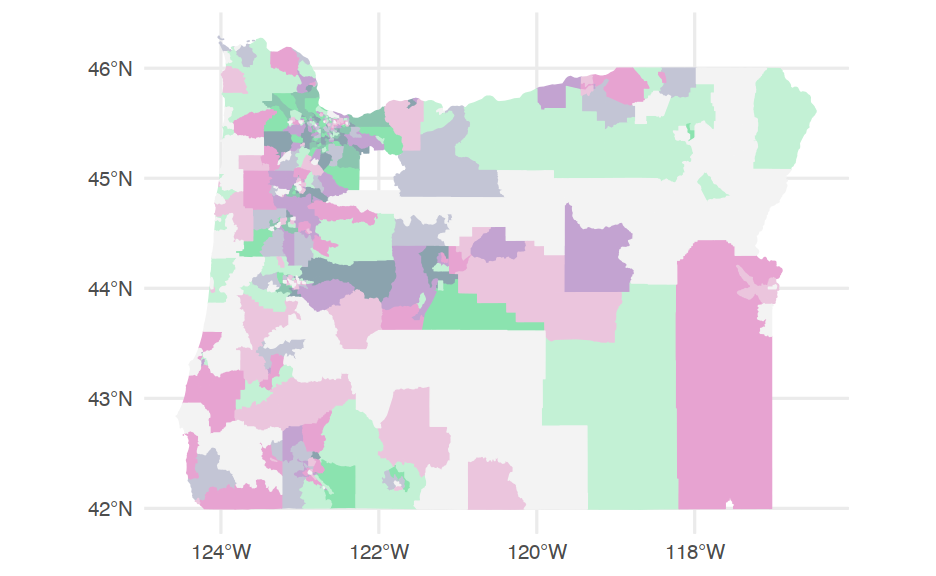

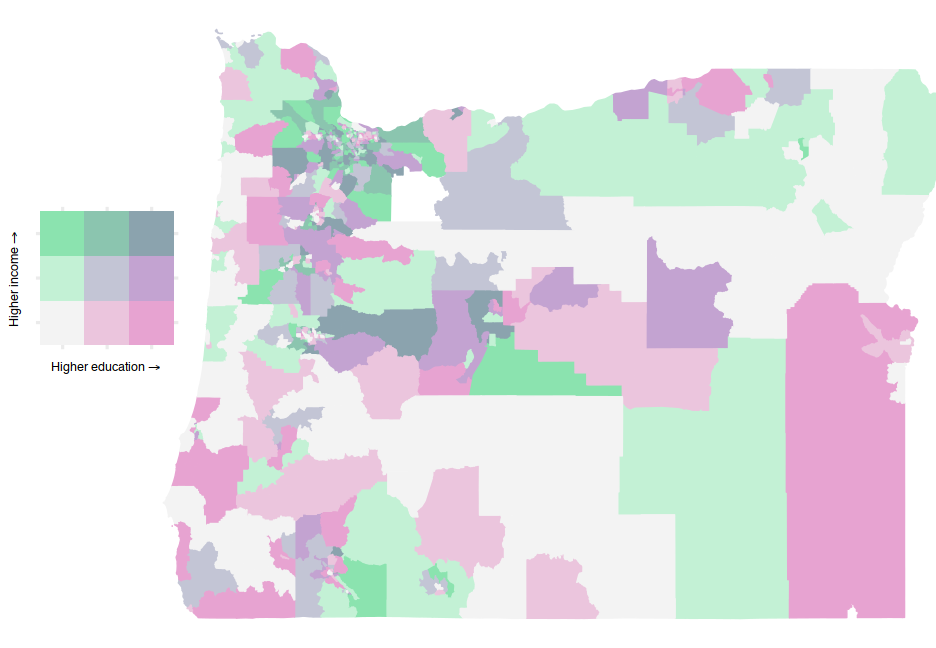

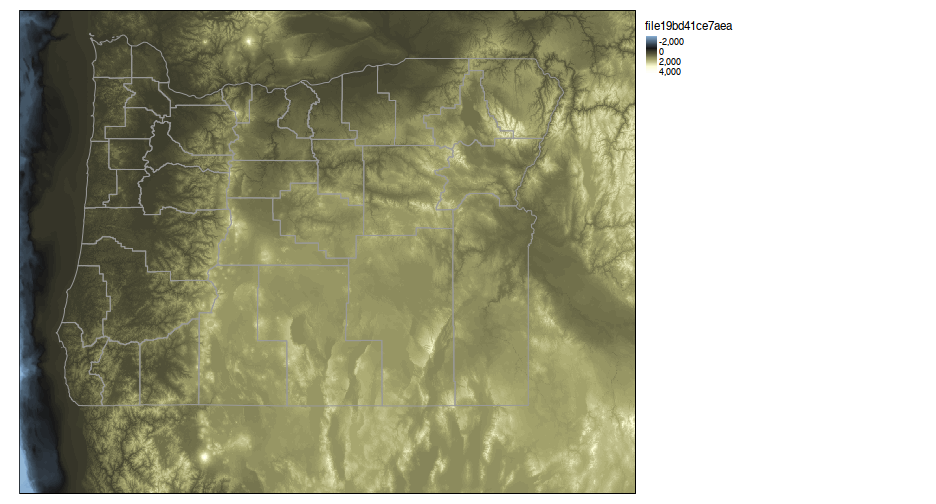

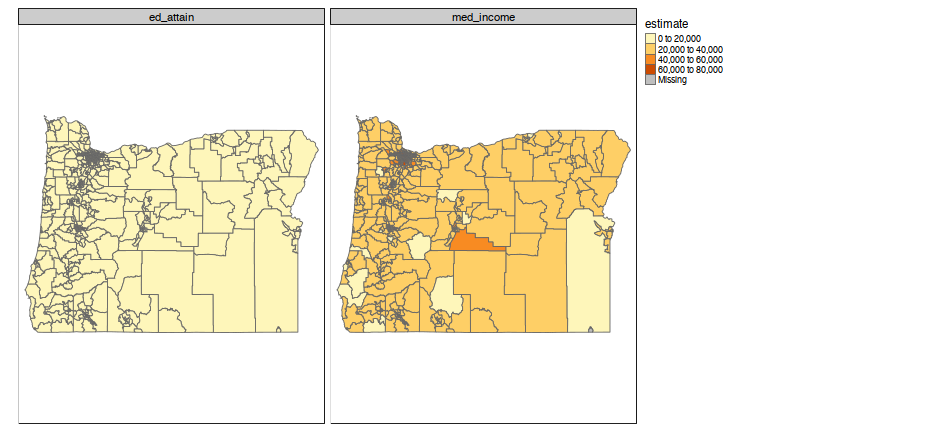

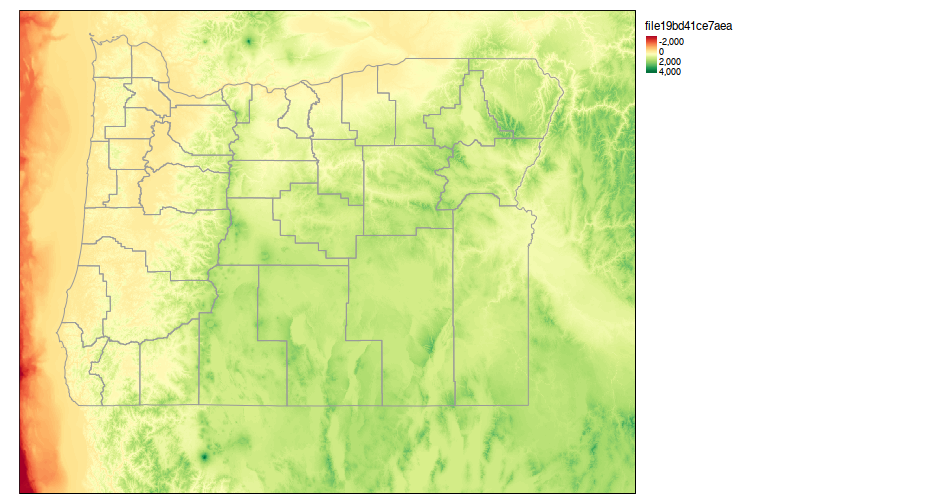

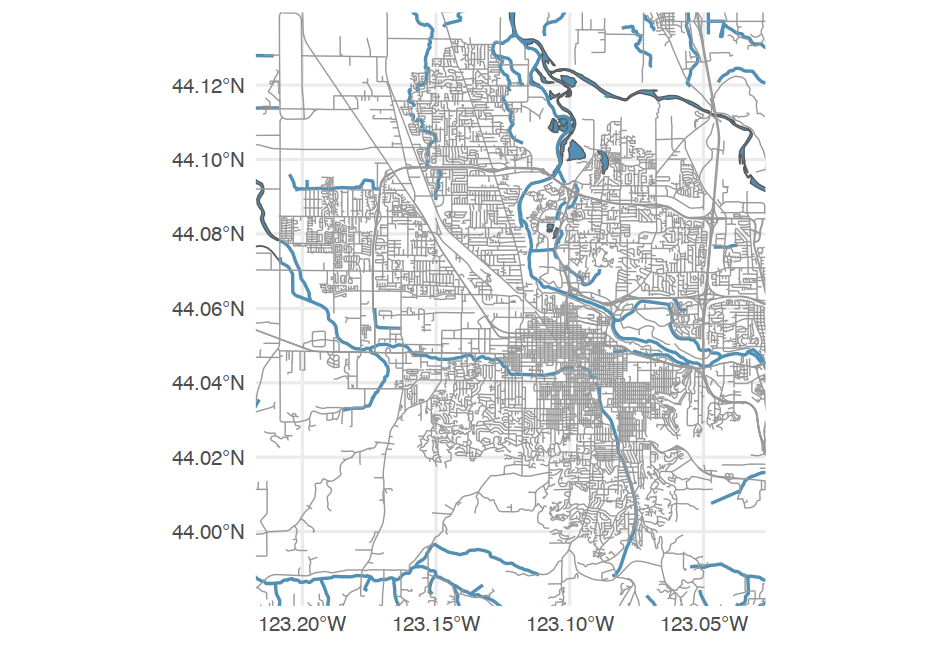

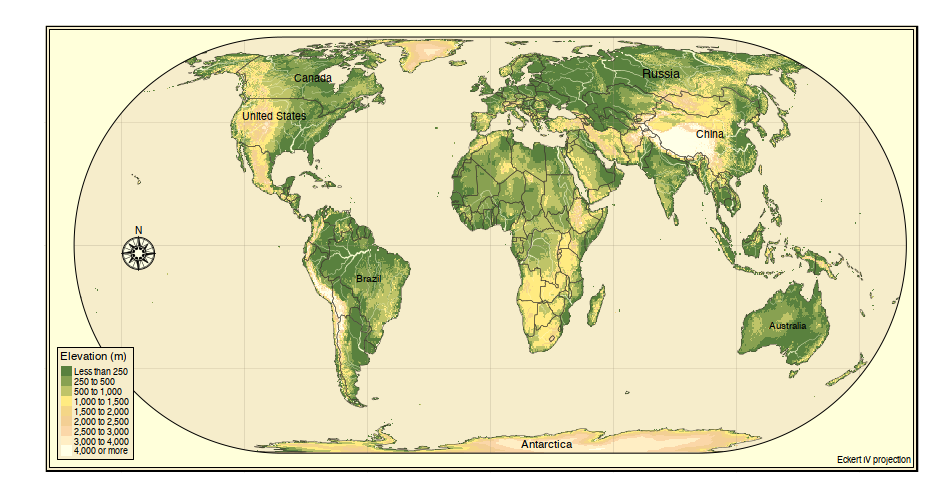

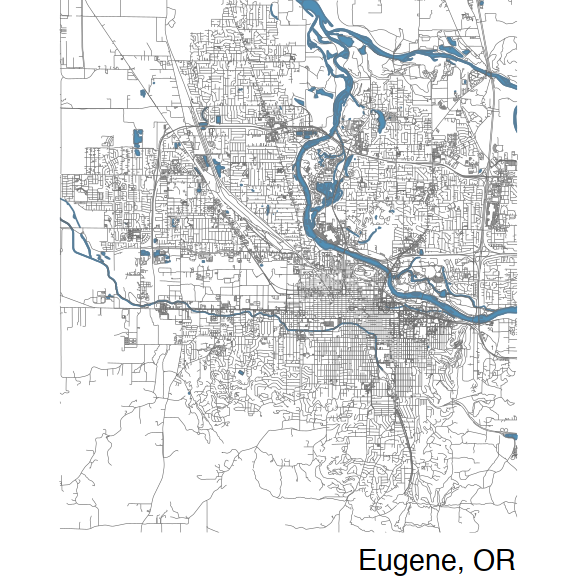

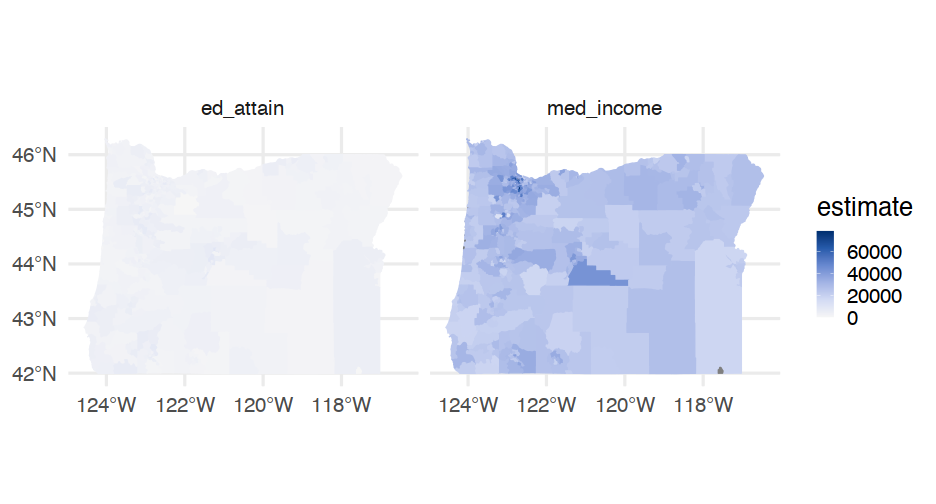

class: center, middle, inverse, title-slide # Geographic Data ## A very quick introduction ### Daniel Anderson ### Week 9, Class 1 --- layout: true <script> feather.replace() </script> <div class="slides-footer"> <span> <a class = "footer-icon-link" href = "https://github.com/uo-datasci-specialization/c2-dataviz-2021/raw/main/static/slides/w9p1.pdf"> <i class = "footer-icon" data-feather="download"></i> </a> <a class = "footer-icon-link" href = "https://dataviz-2021.netlify.app/slides/w9p1.html"> <i class = "footer-icon" data-feather="link"></i> </a> <a class = "footer-icon-link" href = "https://github.com/uo-datasci-specialization/c2-dataviz-2021"> <i class = "footer-icon" data-feather="github"></i> </a> </span> </div> --- class: inverse-blue # Data viz in Wild Makayla ### Sarah Dimakis on deck --- # First - a disclaimer * We're *only* talking about visualizing geographic data, not analyzing geographic data -- * Even so, there's SO MUCH we won't get to -- * Today is an intro - lots more you can do, hopefully you'll feel comfortable with the basics --- # Learning objectives * Know the difference between vector and raster data * Be able to produce basic maps * Be able to obtain different types of geographic data from a few different places * Be able to produce basic interactive maps * Understand the basics of the R geospatial ecosystem -- ### Today is partially about content and partially about exposure --- # Where to learn more ### [Geocomputation with R](https://geocompr.robinlovelace.net) .center[ <img src="https://geocompr.robinlovelace.net/images/cover.png" width = "260px"> ] --- # Zev Ross 2-day Workshop ### From rstudio::conf(2020) <iframe src="http://files.zevross.com/workshops/spatial/slides/html/0-deck-list.html" width="100%" height="400px"></iframe> Some of this presentation comes from the above. --- class: inverse-orange center middle ![](https://s3.amazonaws.com/files.zevross.com/workshops/spatial/slides/html/images/section-1/vector_raster2-sara.png) # Vector versus raster data .footnote[Image from Zev Ross] --- # Vector data * points, lines, and polygons * Can easily include non-spatial data (e.g., number of people living within the polygon) -- * Come in the form of shapefiles (`.shp`), GeoJSON, or frequently in R packages. -- ### This is what we'll talk about almost exclusively today Tends to be the most relevant for social science research questions --- # Raster data .pull-left[ * Divide the space into a grid * Assign each square (pixel) a value ] .pull-right[ ![](https://s3.amazonaws.com/files.zevross.com/workshops/spatial/slides/html/images/section-1/raster-sara.png) ] -- Common formats include images and are often used in satellite and remote sensing data. -- Can occasionally be helpful in social science data to show things like population density. --- # Example ![](https://pbs.twimg.com/media/EuZHPGuWQAk4aL6?format=jpg&name=4096x4096) .footnote[[source](https://www.nytimes.com/interactive/2021/02/16/us/winter-storm-texas-power-outage-map.html)] --- # Some of the #rspatial ecosystem * [{sf}](https://r-spatial.github.io/sf/index.html) * [{raster}](https://cran.r-project.org/web/packages/raster/raster.pdf) * [{ggplot2}](https://ggplot2.tidyverse.org) * [{tmap}](https://github.com/mtennekes/tmap) * [{mapview}](https://r-spatial.github.io/mapview/index.html) -- ### My goal Take you through at least a basic tour of each of these (minus {raster}, although we'll discuss raster data). --- # Some specific challenges with geospatial data * Coordinate reference systems and projections (we won't have much time for this) * List columns (specifically when working wtih {sf} objects) * Different geometry types (lines, points, polygons) * Vector versus raster * Data regularly stored in data "cubes" or "bricks" to represent, e.g., longitude, latitude, and elevation, or time series, or different colors --- # Getting spatial data * We'll only cover a few ways to do this -- * Purposefully United States centric -- * Generally reading shape files is not terrifically difficult. Reading in and manipulating raster data can be tricky at times. -- * Lots of organizations out there that publish spatial data, and a fair amount are available through R packages --- # Working with spatial data ### Two basic options * spatial`*`DataFrame (from the [{sp}](https://cran.r-project.org/web/packages/sp/sp.pdf) package) * sf data frame (simple features) + We'll mostly talk about this -- I can show you spatial`*`DataFrame outside the slides (it hung things up here). Generally, I'd stick with {sf}. Use `sf::st_as_sf` to convert `{sp}` to `{sf}` --- # {tigris} ```r library(tigris) library(sf) *options(tigris_class = "sf") roads_laneco <- roads("OR", "Lane") roads_laneco ``` ``` ## Simple feature collection with 20433 features and 4 fields ## geometry type: LINESTRING ## dimension: XY ## bbox: xmin: -124.1536 ymin: 43.4376 xmax: -121.8078 ymax: 44.29001 ## geographic CRS: NAD83 ## # A tibble: 20,433 x 5 ## LINEARID FULLNAME RTTYP MTFCC geometry ## <chr> <chr> <chr> <chr> <LINESTRING [°]> ## 1 1102152610459 W Lone Oak Lp M S1640 (-123.1256 44.10108, -123.1262 … ## 2 1102217699747 Sheldon Village Lp M S1640 (-123.0742 44.07891, -123.073 4… ## 3 110458663505 Cottage Hts Lp M S1400 (-123.0522 43.7893, -123.0522 4… ## 4 1102152615811 Village Plz Lp M S1640 (-123.1051 44.08716, -123.1058 … ## 5 110458661289 River Pointe Lp M S1400 (-123.0864 44.10306, -123.0852 … ## 6 1102217699746 Sheldon Village Lp M S1640 (-123.0723 44.07875, -123.0723 … ## 7 110458664549 Village Plz Lp M S1400 (-123.1053 44.08658, -123.1052 … ## 8 1102223141058 Carpenter Byp M S1400 (-123.3368 43.78013, -123.3367 … ## 9 1106092829172 State Hwy 126 Bus S S1200 (-123.0502 44.04391, -123.0502 … ## 10 1104493105112 State Hwy 126 Bus S S1200 (-122.996 44.04587, -122.9959 4… ## # … with 20,423 more rows ``` --- #I/O Let's say I want to write the file to disk. ```r # from the sf library write_sf(roads_laneco, here::here("data", "roads_lane.shp")) ``` -- Then read it in later ```r roads_laneco <- read_sf(here::here("data", "roads_lane.shp")) roads_laneco ``` ``` ## Simple feature collection with 20433 features and 4 fields ## geometry type: LINESTRING ## dimension: XY ## bbox: xmin: -124.1536 ymin: 43.4376 xmax: -121.8078 ymax: 44.29001 ## geographic CRS: NAD83 ## # A tibble: 20,433 x 5 ## LINEARID FULLNAME RTTYP MTFCC geometry ## <chr> <chr> <chr> <chr> <LINESTRING [°]> ## 1 1102152610459 W Lone Oak Lp M S1640 (-123.1256 44.10108, -123.1262 … ## 2 1102217699747 Sheldon Village Lp M S1640 (-123.0742 44.07891, -123.073 4… ## 3 110458663505 Cottage Hts Lp M S1400 (-123.0522 43.7893, -123.0522 4… ## 4 1102152615811 Village Plz Lp M S1640 (-123.1051 44.08716, -123.1058 … ## 5 110458661289 River Pointe Lp M S1400 (-123.0864 44.10306, -123.0852 … ## 6 1102217699746 Sheldon Village Lp M S1640 (-123.0723 44.07875, -123.0723 … ## 7 110458664549 Village Plz Lp M S1400 (-123.1053 44.08658, -123.1052 … ## 8 1102223141058 Carpenter Byp M S1400 (-123.3368 43.78013, -123.3367 … ## 9 1106092829172 State Hwy 126 Bus S S1200 (-123.0502 44.04391, -123.0502 … ## 10 1104493105112 State Hwy 126 Bus S S1200 (-122.996 44.04587, -122.9959 4… ## # … with 20,423 more rows ``` --- # {sf} works with ggplot Use `ggplot2::geom_sf` ```r ggplot(roads_laneco) + geom_sf(color = "gray60") ``` ![](w9p1_files/figure-html/roads2-1.png)<!-- --> --- # Add water features ```r lakes <- area_water("OR", "Lane") streams <- linear_water("OR", "Lane") ggplot() + geom_sf(data = lakes, fill = "#518FB5") + # Add lakes geom_sf(data = streams, color = "#518FB5") + # Add streams/drainage geom_sf(data = roads_laneco, color = "gray60") # add roads ``` Note - these functions are all from the [{tigris}](https://github.com/walkerke/tigris) package. --- ![](w9p1_files/figure-html/add-water-eval-1.png)<!-- --> --- # Quick aside ### Similar package `osmdata` * Specifically for street-level data. * We'll just use the boundry box functionality, but you can add many of the same things (and there are other packages that will provide you with boundary boxes) ```r bb <- osmdata::getbb("Eugene") bb ``` ``` ## min max ## x -123.20876 -123.03589 ## y 43.98753 44.13227 ``` --- ```r ggplot() + geom_sf(data = lakes, fill = "#518FB5") + # Add lakes geom_sf(data = streams, color = "#518FB5", size = 1.2) + # Add streams geom_sf(data = roads_laneco, color = "gray60") + # add roads coord_sf(xlim = bb[1, ], ylim = bb[2, ]) # limit range ``` --- class: center middle ![](w9p1_files/figure-html/eugene-eval-1.png)<!-- --> --- # Quickly ### Same thing but fully `osmdata` ```r library(osmdata) library(colorspace) bb <- getbb("Eugene") roads <- bb %>% opq() %>% #overpass query add_osm_feature("highway") %>% # feature to add osmdata_sf() # Change it to sf water <- bb %>% opq() %>% add_osm_feature("water") %>% osmdata_sf() ``` --- # Use the data to plot ```r ggplot() + geom_sf(data = water$osm_multipolygons, fill = "#518FB5", color = darken("#518FB5")) + geom_sf(data = water$osm_polygons, fill = "#518FB5", color = darken("#518FB5")) + geom_sf(data = water$osm_lines, color = darken("#518FB5")) + geom_sf(data = roads$osm_lines, color = "gray40", size = 0.2) + coord_sf(xlim = bb[1, ], ylim = bb[2, ], expand = FALSE) + labs(caption = "Eugene, OR") ``` --- class: center ![](w9p1_files/figure-html/eugene-osm-1.png)<!-- --> --- # Let's get some census data ### Note To do this, you need to first register an API key with the US Census, which you can do [here](https://api.census.gov/data/key_signup.html). Then use `census_api_key("YOUR API KEY")`. Alternatively, you can specify `CENSUS_API_KEY = "YOUR API KEY"` in **.Renviron**. You can do this by using `usethis::edit_r_environ()` --- # Getting the data ```r library(tidycensus) # Find variable code # v <- load_variables(2018, "acs5") # View(v) census_vals <- get_acs(geography = "tract", state = "OR", variables = c(med_income = "B06011_001", ed_attain = "B15003_001"), year = 2018, geometry = TRUE) ``` ``` ## | | | 0% | | | 1% | |= | 1% | |= | 2% | |== | 2% | |== | 3% | |=== | 4% | |=== | 5% | |==== | 5% | |==== | 6% | |===== | 6% | |===== | 7% | |===== | 8% | |====== | 8% | |====== | 9% | |======= | 9% | |======= | 10% | |======== | 11% | |======== | 12% | |========= | 13% | |========== | 14% | |========== | 15% | |=========== | 16% | |============ | 17% | |============ | 18% | |============= | 19% | |============== | 20% | |======================== | 34% | |========================= | 35% | |========================== | 37% | |=========================== | 38% | |============================ | 40% | |============================= | 41% | |============================== | 43% | |=============================== | 45% | |================================ | 46% | |================================= | 47% | |================================= | 48% | |================================== | 49% | |==================================== | 51% | |===================================== | 52% | |====================================== | 54% | |======================================= | 55% | |======================================== | 57% | |================================================ | 68% | |================================================= | 69% | |================================================= | 70% | |================================================== | 72% | |=================================================== | 73% | |==================================================== | 74% | |===================================================== | 76% | |====================================================== | 77% | |======================================================= | 79% | |======================================================== | 80% | |========================================================= | 82% | |=========================================================== | 84% | |============================================================ | 86% | |============================================================= | 87% | |============================================================== | 89% | |=============================================================== | 91% | |================================================================ | 92% | |================================================================== | 94% | |=================================================================== | 96% | |======================================================================| 100% ``` --- # Look at the data ```r census_vals ``` ``` ## Simple feature collection with 1668 features and 5 fields (with 12 geometries empty) ## geometry type: MULTIPOLYGON ## dimension: XY ## bbox: xmin: -124.5662 ymin: 41.99179 xmax: -116.4635 ymax: 46.29204 ## geographic CRS: NAD83 ## First 10 features: ## GEOID NAME variable estimate ## 1 41045970600 Census Tract 9706, Malheur County, Oregon med_income 23670 ## 2 41045970600 Census Tract 9706, Malheur County, Oregon ed_attain 2714 ## 3 41047001200 Census Tract 12, Marion County, Oregon med_income 27106 ## 4 41047001200 Census Tract 12, Marion County, Oregon ed_attain 2695 ## 5 41047002000 Census Tract 20, Marion County, Oregon med_income 33271 ## 6 41047002000 Census Tract 20, Marion County, Oregon ed_attain 7260 ## 7 41047010501 Census Tract 105.01, Marion County, Oregon med_income 31291 ## 8 41047010501 Census Tract 105.01, Marion County, Oregon ed_attain 4099 ## 9 41051000301 Census Tract 3.01, Multnomah County, Oregon med_income 22531 ## 10 41051000301 Census Tract 3.01, Multnomah County, Oregon ed_attain 3550 ## moe geometry ## 1 3812 MULTIPOLYGON (((-117.4678 4... ## 2 211 MULTIPOLYGON (((-117.4678 4... ## 3 5112 MULTIPOLYGON (((-123.0447 4... ## 4 213 MULTIPOLYGON (((-123.0447 4... ## 5 3565 MULTIPOLYGON (((-123.0362 4... ## 6 477 MULTIPOLYGON (((-123.0362 4... ## 7 5080 MULTIPOLYGON (((-122.7894 4... ## 8 363 MULTIPOLYGON (((-122.7894 4... ## 9 3680 MULTIPOLYGON (((-122.6435 4... ## 10 436 MULTIPOLYGON (((-122.6435 4... ``` --- # Plot it ```r library(colorspace) ggplot(census_vals) + geom_sf(aes(fill = estimate, color = estimate)) + facet_wrap(~variable) + guides(color = "none") + scale_fill_continuous_diverging("Blue-Red 3", rev = TRUE) + scale_color_continuous_diverging("Blue-Red 3", rev = TRUE) ``` --- # hmm... ![](w9p1_files/figure-html/plot-census-1-eval-1.png)<!-- --> --- # Try again ```r library(colorspace) *income <- filter(census_vals, variable == "med_income") income_plot <- ggplot(income) + geom_sf(aes(fill = estimate, color = estimate)) + facet_wrap(~variable) + guides(color = "none") + scale_fill_continuous_diverging( "Blue-Red 3", rev = TRUE, * mid = mean(income$estimate, na.rm = TRUE) ) + scale_color_continuous_diverging( "Blue-Red 3", rev = TRUE, * mid = mean(income$estimate, na.rm = TRUE) ) + theme(legend.position = "bottom", legend.key.width = unit(2, "cm")) ``` --- ```r income_plot ``` ![](w9p1_files/figure-html/plot-census-2-eval-1.png)<!-- --> --- # Same thing for education ```r *ed <- filter(census_vals, variable == "ed_attain") ed_plot <- ggplot(ed) + geom_sf(aes(fill = estimate, color = estimate)) + facet_wrap(~variable) + guides(color = "none") + scale_fill_continuous_diverging( "Blue-Red 3", rev = TRUE, * mid = mean(ed$estimate, na.rm = TRUE) ) + scale_color_continuous_diverging( "Blue-Red 3", rev = TRUE, * mid = mean(ed$estimate, na.rm = TRUE) ) + theme(legend.position = "bottom", legend.key.width = unit(2, "cm")) ``` --- ```r ed_plot ``` ![](w9p1_files/figure-html/edu-2-eval-1.png)<!-- --> --- # Put them together ```r gridExtra::grid.arrange(income_plot, ed_plot, ncol = 2) ``` ![](w9p1_files/figure-html/together-1.png)<!-- --> --- class: inverse-blue middle # Bivariate color scales --- background-image: url(https://timogrossenbacher.ch/wp-content/uploads/2019/04/bm-thematic-bivariate-map-with-legend-1-2.png) background-size: cover --- # How? There are a few different ways. Here's one: * Break continuous variable into categorical values * Assign each combination of values between categorical vars a color * Make sure the combinations of the colors make sense -- ![](https://www.joshuastevens.net/images/js_bivariateMix.gif) .footnote[gif from [Joshua Stevens](https://www.joshuastevens.net/cartography/make-a-bivariate-choropleth-map/)] --- # Do it Note - this will be fairly quick. I'm not expecting you to know how to do this, but I want to show you the idea and give you the breadcrumbs for the code you may need. -- ### First - move it to wider ```r wider <- census_vals %>% select(-moe) %>% spread(variable, estimate) %>% # pivot_wider doesn't work w/sf yet drop_na(ed_attain, med_income) wider ``` ``` ## Simple feature collection with 825 features and 4 fields ## geometry type: MULTIPOLYGON ## dimension: XY ## bbox: xmin: -124.5662 ymin: 41.99179 xmax: -116.4635 ymax: 46.29204 ## geographic CRS: NAD83 ## First 10 features: ## GEOID NAME ed_attain med_income ## 1 41001950100 Census Tract 9501, Baker County, Oregon 2228 24846 ## 2 41001950200 Census Tract 9502, Baker County, Oregon 2374 23288 ## 3 41001950300 Census Tract 9503, Baker County, Oregon 1694 24080 ## 4 41001950400 Census Tract 9504, Baker County, Oregon 2059 24083 ## 5 41001950500 Census Tract 9505, Baker County, Oregon 1948 26207 ## 6 41001950600 Census Tract 9506, Baker County, Oregon 1604 23381 ## 7 41003000100 Census Tract 1, Benton County, Oregon 5509 26188 ## 8 41003000202 Census Tract 2.02, Benton County, Oregon 3630 35343 ## 9 41003000400 Census Tract 4, Benton County, Oregon 5562 40869 ## 10 41003000500 Census Tract 5, Benton County, Oregon 2526 38922 ## geometry ## 1 MULTIPOLYGON (((-118.5194 4... ## 2 MULTIPOLYGON (((-117.9158 4... ## 3 MULTIPOLYGON (((-117.9506 4... ## 4 MULTIPOLYGON (((-117.8309 4... ## 5 MULTIPOLYGON (((-117.9774 4... ## 6 MULTIPOLYGON (((-117.7775 4... ## 7 MULTIPOLYGON (((-123.2812 4... ## 8 MULTIPOLYGON (((-123.3415 4... ## 9 MULTIPOLYGON (((-123.3039 4... ## 10 MULTIPOLYGON (((-123.2979 4... ``` --- # Find the quartiles ```r ed_quartiles <- quantile(wider$ed_attain, probs = seq(0, 1, length.out = 4)) inc_quartiles <- quantile(wider$med_income, probs = seq(0, 1, length.out = 4)) ed_quartiles ``` ``` ## 0% 33.33333% 66.66667% 100% ## 54.000 2675.333 3894.667 10039.000 ``` --- # Create the cut variable ```r wider <- wider %>% mutate(cat_ed = cut(ed_attain, ed_quartiles), cat_inc = cut(med_income, inc_quartiles)) wider %>% select(starts_with("cat")) ``` ``` ## Simple feature collection with 825 features and 2 fields ## geometry type: MULTIPOLYGON ## dimension: XY ## bbox: xmin: -124.5662 ymin: 41.99179 xmax: -116.4635 ymax: 46.29204 ## geographic CRS: NAD83 ## First 10 features: ## cat_ed cat_inc geometry ## 1 (54,2.68e+03] (7.46e+03,2.56e+04] MULTIPOLYGON (((-118.5194 4... ## 2 (54,2.68e+03] (7.46e+03,2.56e+04] MULTIPOLYGON (((-117.9158 4... ## 3 (54,2.68e+03] (7.46e+03,2.56e+04] MULTIPOLYGON (((-117.9506 4... ## 4 (54,2.68e+03] (7.46e+03,2.56e+04] MULTIPOLYGON (((-117.8309 4... ## 5 (54,2.68e+03] (2.56e+04,3.24e+04] MULTIPOLYGON (((-117.9774 4... ## 6 (54,2.68e+03] (7.46e+03,2.56e+04] MULTIPOLYGON (((-117.7775 4... ## 7 (3.89e+03,1e+04] (2.56e+04,3.24e+04] MULTIPOLYGON (((-123.2812 4... ## 8 (2.68e+03,3.89e+03] (3.24e+04,7.86e+04] MULTIPOLYGON (((-123.3415 4... ## 9 (3.89e+03,1e+04] (3.24e+04,7.86e+04] MULTIPOLYGON (((-123.3039 4... ## 10 (54,2.68e+03] (3.24e+04,7.86e+04] MULTIPOLYGON (((-123.2979 4... ``` --- # Set palette ```r # First drop geo column pal <- st_drop_geometry(wider) %>% count(cat_ed, cat_inc) %>% arrange(cat_ed, cat_inc) %>% drop_na(cat_ed, cat_inc) %>% mutate(pal = c("#F3F3F3", "#C3F1D5", "#8BE3AF", "#EBC5DD", "#C3C5D5", "#8BC5AF", "#E7A3D1", "#C3A3D1", "#8BA3AE")) pal ``` ``` ## cat_ed cat_inc n pal ## 1 (54,2.68e+03] (7.46e+03,2.56e+04] 113 #F3F3F3 ## 2 (54,2.68e+03] (2.56e+04,3.24e+04] 87 #C3F1D5 ## 3 (54,2.68e+03] (3.24e+04,7.86e+04] 73 #8BE3AF ## 4 (2.68e+03,3.89e+03] (7.46e+03,2.56e+04] 85 #EBC5DD ## 5 (2.68e+03,3.89e+03] (2.56e+04,3.24e+04] 97 #C3C5D5 ## 6 (2.68e+03,3.89e+03] (3.24e+04,7.86e+04] 93 #8BC5AF ## 7 (3.89e+03,1e+04] (7.46e+03,2.56e+04] 75 #E7A3D1 ## 8 (3.89e+03,1e+04] (2.56e+04,3.24e+04] 91 #C3A3D1 ## 9 (3.89e+03,1e+04] (3.24e+04,7.86e+04] 109 #8BA3AE ``` --- # Join & plot ```r bivar_map <- left_join(wider, pal) %>% ggplot() + geom_sf(aes(fill = pal, color = pal)) + guides(fill = "none", color = "none") + scale_fill_identity() + scale_color_identity() ``` --- class: center middle ![](w9p1_files/figure-html/bivar-plot-1.png)<!-- --> --- # Add in legend ### First create it ```r leg <- ggplot(pal, aes(cat_ed, cat_inc)) + geom_tile(aes(fill = pal)) + scale_fill_identity() + coord_fixed() + labs(x = expression("Higher education" %->% ""), y = expression("Higher income" %->% "")) + theme(axis.text = element_blank(), axis.title = element_text(size = 12)) leg ``` ![](w9p1_files/figure-html/legend-1.png)<!-- --> --- # Put together ```r library(cowplot) ggdraw() + draw_plot(bivar_map + theme_void(), 0.1, 0.1, 1, 1) + draw_plot(leg, -0.05, 0, 0.3, 0.3) ``` Coordinates are mostly guess/check depending on aspect ratio --- ![](w9p1_files/figure-html/bivar-full-eval-1.png)<!-- --> --- class: inverse-orange middle # {tmap} ### Back to just one variable I mostly use `ggplot()`, but the **{tmap}** package is really powerful and the syntax is pretty straightforward, so let's have a quick overview. --- # Education map with [{tmap}](https://cran.r-project.org/web/packages/tmap/vignettes/tmap-getstarted.html). ```r library(tmap) tm_shape(wider) + tm_polygons("med_income") ``` ![](w9p1_files/figure-html/tmap-edu-1.png)<!-- --> --- # Facet ```r tm_shape(census_vals) + tm_polygons("estimate") + tm_facets("variable") ``` ![](w9p1_files/figure-html/tmap-facet1-1.png)<!-- --> --- # Change colors ```r tm_shape(wider) + tm_polygons("ed_attain", * palette = "magma", * border.col = "gray90", * lwd = 0.1) ``` ![](w9p1_files/figure-html/tmap-facet3-1.png)<!-- --> --- # Continuous legend ```r tm_shape(wider) + tm_polygons("ed_attain", style = "cont") + tm_layout(legend.outside = TRUE) ``` ![](w9p1_files/figure-html/tmap-cont-leg-1.png)<!-- --> --- # Add text * First, let's get data at the county level, instead of census tract level ```r cnty <- get_acs(geography = "county", state = "OR", variables = c(ed_attain = "B15003_001"), year = 2018, geometry = TRUE) ``` ``` ## | | | 0% | | | 1% | |= | 1% | |= | 2% | |== | 2% | |== | 3% | |=== | 4% | |=== | 5% | |==== | 5% | |==== | 6% | |===== | 7% | |====== | 8% | |====== | 9% | |======= | 9% | |======== | 11% | |======== | 12% | |========= | 13% | |========= | 14% | |========== | 14% | |========== | 15% | |=========== | 15% | |=========== | 16% | |============ | 17% | |============ | 18% | |============= | 18% | |============= | 19% | |=============== | 22% | |================ | 22% | |================ | 23% | |================= | 24% | |================= | 25% | |================== | 25% | |================== | 26% | |=================== | 26% | |=================== | 27% | |=================== | 28% | |==================== | 28% | |==================== | 29% | |===================== | 29% | |===================== | 30% | |===================== | 31% | |====================== | 31% | |====================== | 32% | |======================= | 32% | |======================== | 35% | |========================= | 35% | |========================= | 36% | |========================== | 37% | |========================== | 38% | |=========================== | 38% | |=========================== | 39% | |============================= | 41% | |============================= | 42% | |============================== | 42% | |============================== | 43% | |=============================== | 44% | |=============================== | 45% | |================================ | 45% | |================================ | 46% | |================================= | 47% | |================================= | 48% | |================================== | 48% | |=================================== | 51% | |==================================== | 51% | |==================================== | 52% | |===================================== | 52% | |===================================== | 53% | |======================================= | 56% | |======================================== | 56% | |======================================== | 57% | |======================================== | 58% | |========================================= | 58% | |========================================= | 59% | |========================================== | 59% | |========================================== | 60% | |============================================ | 63% | |============================================= | 64% | |============================================= | 65% | |============================================== | 65% | |============================================== | 66% | |=============================================== | 67% | |=============================================== | 68% | |================================================ | 68% | |================================================ | 69% | |================================================= | 69% | |================================================= | 70% | |================================================= | 71% | |================================================== | 71% | |================================================== | 72% | |=================================================== | 72% | |=================================================== | 73% | |==================================================== | 74% | |==================================================== | 75% | |====================================================== | 78% | |======================================================= | 78% | |======================================================= | 79% | |======================================================== | 79% | |======================================================== | 80% | |======================================================== | 81% | |========================================================= | 81% | |=========================================================== | 85% | |============================================================ | 85% | |============================================================ | 86% | |============================================================= | 87% | |============================================================= | 88% | |============================================================== | 88% | |============================================================== | 89% | |=============================================================== | 90% | |=============================================================== | 91% | |================================================================ | 91% | |================================================================ | 92% | |================================================================= | 92% | |================================================================= | 93% | |================================================================= | 94% | |================================================================== | 94% | |================================================================== | 95% | |=================================================================== | 95% | |=================================================================== | 96% | |==================================================================== | 96% | |===================================================================== | 99% | |======================================================================| 99% | |======================================================================| 100% ``` --- ```r cnty ``` ``` ## Simple feature collection with 36 features and 5 fields ## geometry type: MULTIPOLYGON ## dimension: XY ## bbox: xmin: -124.5662 ymin: 41.99179 xmax: -116.4635 ymax: 46.29204 ## geographic CRS: NAD83 ## First 10 features: ## GEOID NAME variable estimate moe ## 1 41005 Clackamas County, Oregon ed_attain 285481 121 ## 2 41021 Gilliam County, Oregon ed_attain 1448 97 ## 3 41033 Josephine County, Oregon ed_attain 63006 172 ## 4 41035 Klamath County, Oregon ed_attain 46345 108 ## 5 41039 Lane County, Oregon ed_attain 251966 137 ## 6 41043 Linn County, Oregon ed_attain 85098 147 ## 7 41051 Multnomah County, Oregon ed_attain 579186 133 ## 8 41055 Sherman County, Oregon ed_attain 1238 73 ## 9 41061 Union County, Oregon ed_attain 17317 115 ## 10 41007 Clatsop County, Oregon ed_attain 27935 125 ## geometry ## 1 MULTIPOLYGON (((-122.8679 4... ## 2 MULTIPOLYGON (((-120.6535 4... ## 3 MULTIPOLYGON (((-124.042 42... ## 4 MULTIPOLYGON (((-122.29 42.... ## 5 MULTIPOLYGON (((-124.1503 4... ## 6 MULTIPOLYGON (((-123.2608 4... ## 7 MULTIPOLYGON (((-122.9292 4... ## 8 MULTIPOLYGON (((-121.0312 4... ## 9 MULTIPOLYGON (((-118.6978 4... ## 10 MULTIPOLYGON (((-123.5989 4... ``` --- # Estimate polygon centroid ```r centroids <- st_centroid(cnty) ``` -- ### Extract just county name ```r centroids <- centroids %>% mutate(county = str_replace_all(NAME, " County, Oregon", "")) ``` --- # Plot ```r tm_shape(cnty) + tm_polygons("estimate", style = "cont") + tm_shape(centroids) + tm_text("county", size = 0.5) + tm_layout(legend.outside = TRUE) ``` ![](w9p1_files/figure-html/county-name-plot-1.png)<!-- --> --- # Add raster elevation data ```r states <- get_acs("state", variables = c(ed_attain = "B15003_001"), year = 2018, geometry = TRUE) or <- filter(states, NAME == "Oregon") # convert to spatial data frame sp <- as(or, "Spatial") # use elevatr library to pull data library(elevatr) or_elev <- get_elev_raster(sp, z = 9) lane_elev <- get_elev_raster(sp, z = 9) ``` --- # Plot ```r tm_shape(or_elev) + tm_raster(midpoint = NA, style = "cont") + tm_layout(legend.outside = TRUE) + tm_shape(cnty) + tm_borders(col = "gray60") ``` ![](w9p1_files/figure-html/plot-raster-1.png)<!-- --> --- # Add custom palette ```r tm_shape(or_elev) + tm_raster(midpoint = NA, style = "cont", palette = c("#E2FCFF", "#83A9CE", "#485C6E", "#181818", "#5C5B3E", "#AAA971", "#FCFCD3", "#ffffff")) + tm_layout(legend.outside = TRUE) + tm_shape(cnty) + tm_borders(col = "gray60") ``` --- class: full-size-fig ![](w9p1_files/figure-html/plot-raster-custom-eval-1.png)<!-- --> --- # You can do some amazing things! ![](w9p1_files/figure-html/unnamed-chunk-8-1.png)<!-- --> --- # Create interactive maps Just change run `tmap_mode("view)` then run the same code as before ```r tmap_mode("view") tm_shape(cnty) + tm_polygons("estimate") + tm_shape(centroids) + tm_text("county", size = 0.5) ``` ---

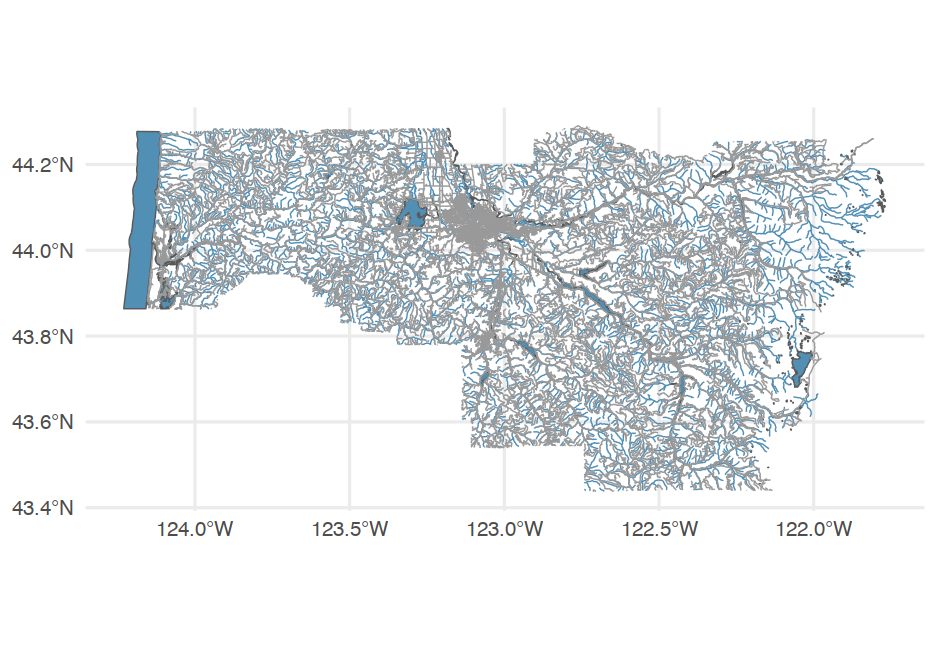

--- # mapview * Really quick easy interactive maps ```r library(mapview) mapview(cnty) ```

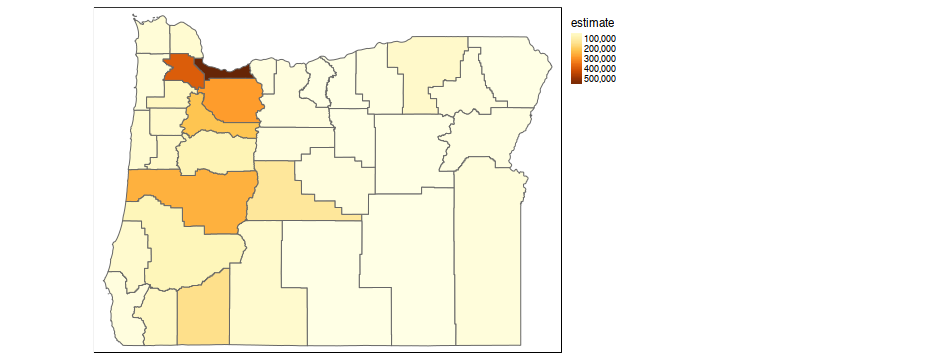

--- ```r mapview(cnty, zcol = "estimate") ```
--- ```r mapview(cnty, zcol = "estimate", popup = leafpop::popupTable(cnty, zcol = c("NAME", "estimate"))) ```

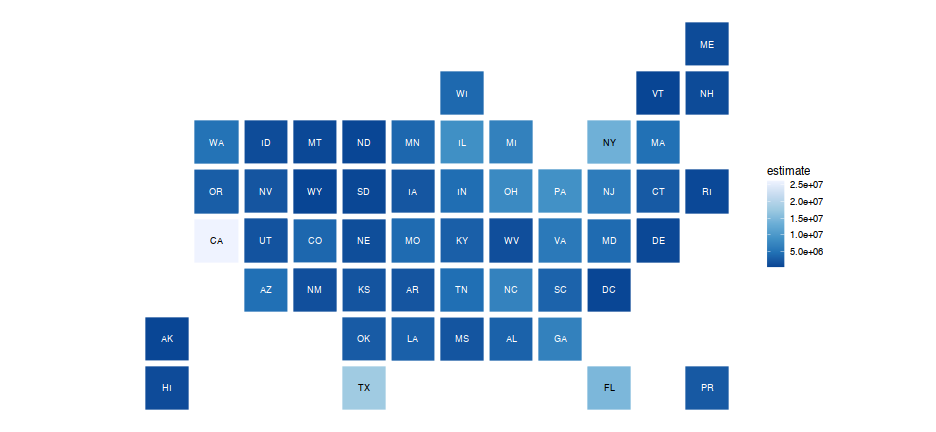

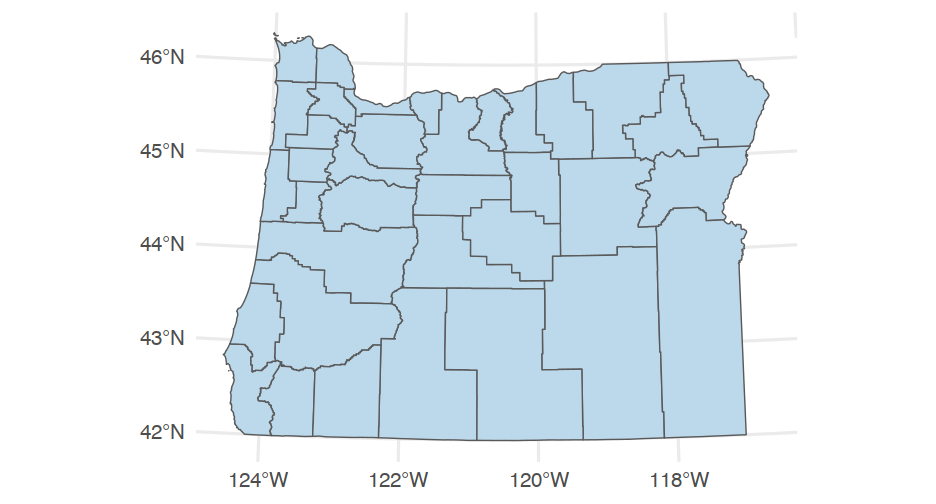

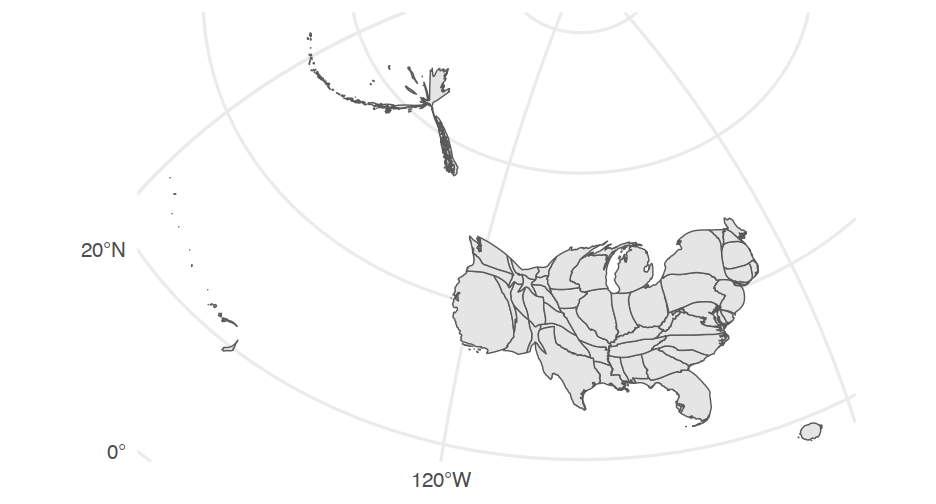

--- class: inverse-blue center middle # A few other things of note --- # statebins ```r library(statebins) statebins(states, state_col = "NAME", value_col = "estimate") + theme_void() ``` ![](w9p1_files/figure-html/statebins-1.png)<!-- --> --- # Cartograms ```r library(cartogram) or_county_pop <- get_acs(geography = "county", state = "OR", variables = "B00001_001", year = 2018, geometry = TRUE) # Set projection or_county_pop <- st_transform(or_county_pop, crs = 2992) # found the CRS here: https://www.oregon.gov/geo/pages/projections.aspx carto_counties <- cartogram_cont(or_county_pop, "estimate") ``` --- # Compare .pull-left[ ```r ggplot(or_county_pop) + geom_sf(fill = "#BCD8EB") ``` ![](w9p1_files/figure-html/standard-1.png)<!-- --> ] .pull-right[ ```r ggplot(carto_counties) + geom_sf(fill = "#D5FFFA") ``` ![](w9p1_files/figure-html/carto-counties-1.png)<!-- --> ] --- # State ```r state_pop <- get_acs(geography = "state", variables = "B00001_001", year = 2018, geometry = TRUE) # Set projection state_pop <- st_transform(state_pop, crs = 2163) # found the CRS here: https://epsg.io/transform#s_srs=3969&t_srs=4326 carto_states <- cartogram_cont(state_pop, "estimate") ``` --- # Cartogram of USA by population ```r ggplot(carto_states) + geom_sf() ``` ![](w9p1_files/figure-html/carto-us-1.png)<!-- --> --- # Last note You may or may not like cartograms. -- Just be careful not to lie with maps. ![](https://s3files.core77.com/blog/images/960537_81_90771_DrdO3qFgW.gif) --- class: inverse-green middle # Next time ## Customizing web pages with CSS Last actual lecture for this class
