# Colors!
### Daniel Anderson
### Week 5, Class 1

---

layout: true

---
class: inverse-blue
# Data viz in Wild

Chris

Vinita

### Shijing and David on deck

---
# Agenda
* Color basics
  + 3 basic ways color is used
* Color blindness
* Some common problems with color use
* Quick discussion of palettes

--
### Learning Objectives
* Understand different types of color palettes
  + ...and when you should use one versus another
* Understand and be able to effectively evaluate concerns related to color
blindness
* Be able to fluently change colors/fills within ggplot

---
# Before we get too deep
### Some very practical advice
* Keep straight when color is mapped to a variable through `aes` and when it's
modifying an element overall

+ Former requires `scale_color_*` or `scale_fill_*` while the latter does not

--
* Keep straight colors and fills (see former bullet)

--
* Use advice of others to your advantage (e.g., http://colorbrewer2.org/)

---
class: inverse bottom center
background-image:url(http://socviz.co/assets/ch-01-luminance-contrast-color.png)
background-size:contain

# Why color choice matters

---
class: inverse bottom center
background-image:url(http://socviz.co/assets/ch-01-luminance-contrast-bw.png)
background-size:contain

# Why color choice matters

---
class: inverse-red middle
# Another quick example

.realbig[
.middle[
.center[
[{rayshader}](https://resources.rstudio.com/rstudio-conf-2019/3d-mapping-plotting-and-printing-with-rayshader)
]
]
]

---
# 3 fundamental uses of color

--
1. Distinguish groups from each other

--
1. Represent data values

--
1. Highlight

---
class:inverse-blue middle

# Color as a tool to distinguish

---
# Discrete items
* Often no intrinsic order

--
### Qualitative color scale
* Finite number of colors
	+ Chosen to maximize distinctness, while also be equivalent
	+ Equivalent
		- No  color should stand out
		- No impression of order

---
background-image:url(https://serialmentor.com/dataviz/color_basics_files/figure-html/qualitative-scales-1.png)
background-size:contain

# Some examples

.footnote[See more about the Okabe Ito palette origins [here]( http://jfly.iam.u-tokyo.ac.jp/color/)]

---
# How do we use them?
Imagine we have data like this

```r
popgrowth_df
```

```
## # A tibble: 51 x 7
##   region    division           state          pop2000  pop2010    popgrowth
##   <fct>     <chr>              <fct>            <dbl>    <dbl>        <dbl>
## 1 Midwest   East North Central Michigan       9938444  9883640 -0.005514344
## 2 Northeast New England        Rhode Island   1048319  1052567  0.004052202
## 3 South     West South Central Louisiana      4468976  4533372  0.01440956
## 4 Midwest   East North Central Ohio          11353140 11536504  0.01615095
## 5 Northeast Middle Atlantic    New York      18976457 19378102  0.02116544
## 6 South     South Atlantic     West Virginia  1808344  1852994  0.02469110
## # … with 45 more rows, and 1 more variable: area <dbl>
```

---

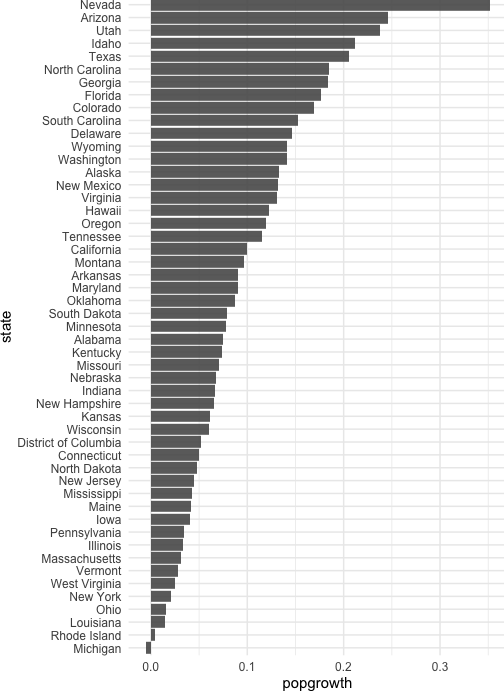

# Maybe a plot like this

.pull-left[

```r
ggplot(popgrowth_df,
       aes(x = popgrowth,
           y = state)) +
  geom_col(alpha = 0.9)
```
]

.pull-right[
![](w5p1_files/figure-html/unnamed-chunk-2-1.png)
]

---

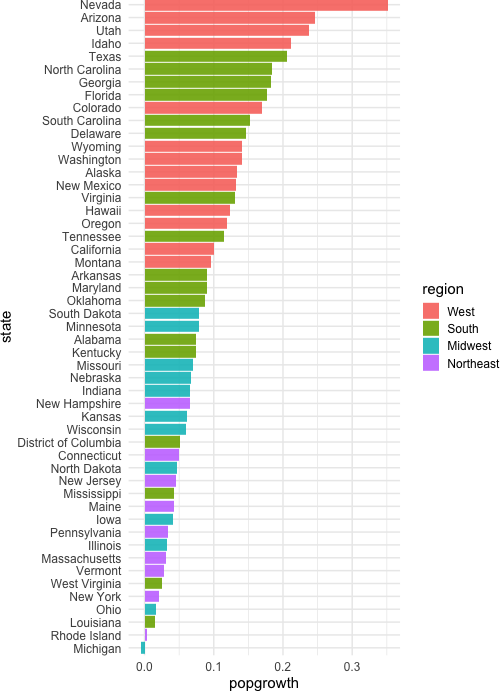

# Alternatively, fill by region

.pull-left[

```r
ggplot(popgrowth_df,
       aes(x = popgrowth,
           y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9)
```
]

.pull-right[
![](w5p1_files/figure-html/unnamed-chunk-3-1.png)
]

---

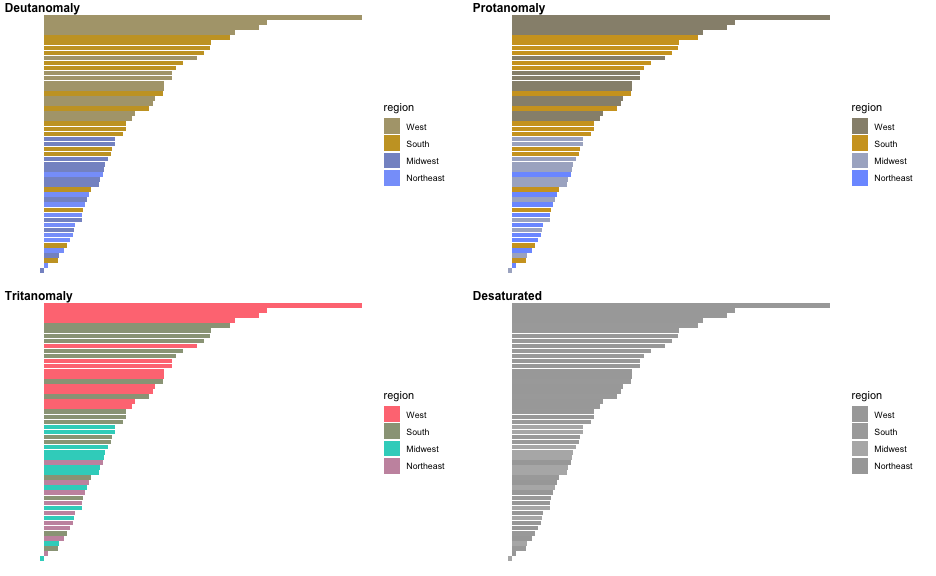

# Problem with default palette

![](w5p1_files/figure-html/colorblind1-1.png)

---

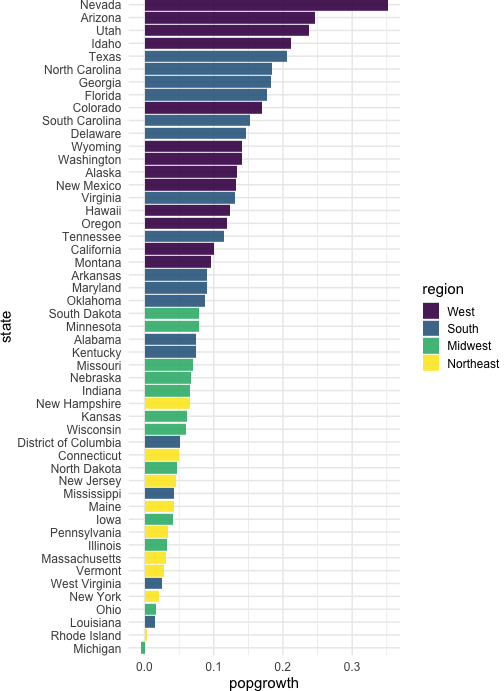

# Alternative: viridis

.pull-left[

```r
ggplot(popgrowth_df,
       aes(x = popgrowth,
           y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
* scale_fill_viridis_d()
```
]

.pull-right[
![](w5p1_files/figure-html/unnamed-chunk-4-1.png)
]

---

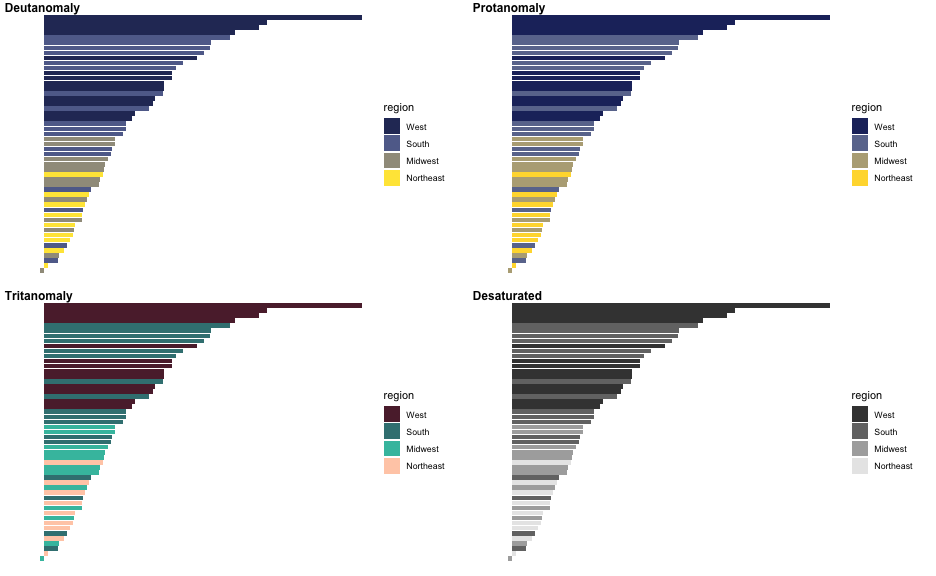

# Revised version

![](w5p1_files/figure-html/unnamed-chunk-5-1.png)

---

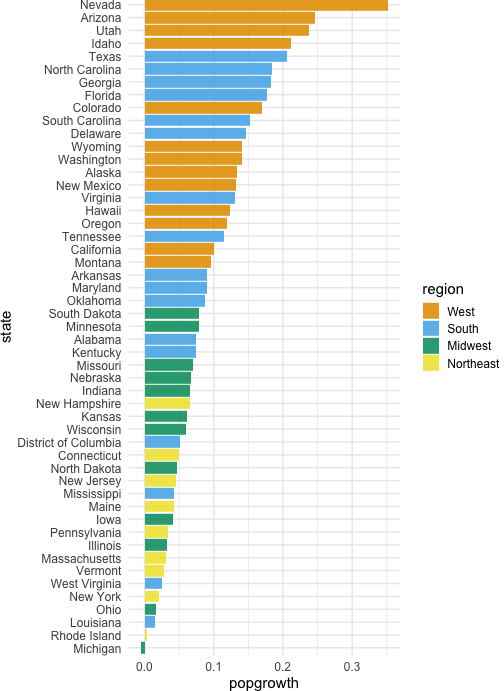

# The Okabe Ito palette

.pull-left[

* From [Color Universal Design](http://jfly.iam.u-tokyo.ac.jp/color/)

```r
*library(colorblindr)

ggplot(popgrowth_df,
       aes(x = popgrowth,
           y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
* scale_fill_OkabeIto()
```
]

.pull-right[
![](w5p1_files/figure-html/unnamed-chunk-6-1.png)
]

---
# Okabe Ito for colorblindness

![](w5p1_files/figure-html/unnamed-chunk-7-1.png)

---

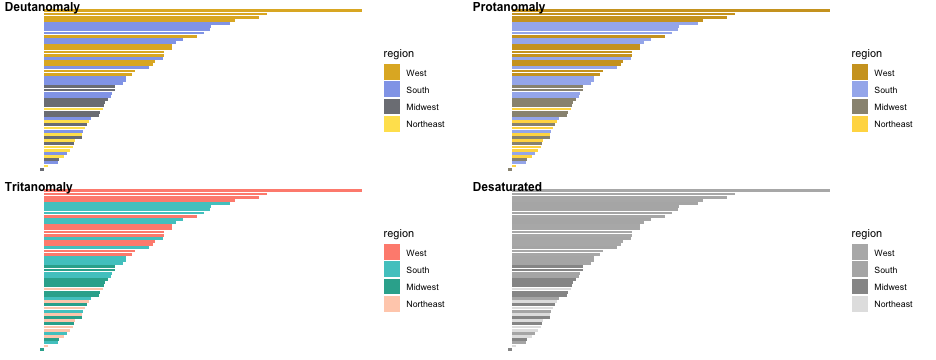

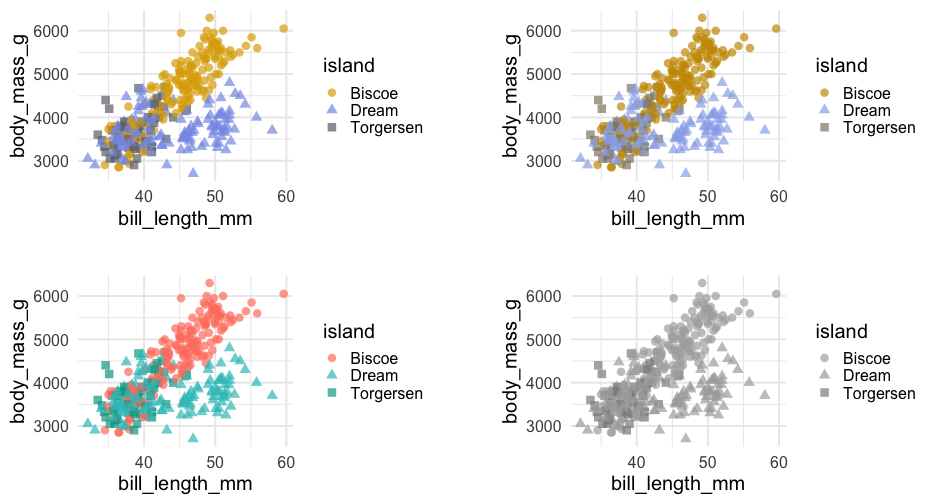

# How am I checking for colorblindness?
* Also part of the **{colorblindr}** package ([here](https://github.com/clauswilke/colorblindr))
  + depends on the dev versions of **{colorspace}** and **{cowplot}**, which are useful packages in their own right

```r
devtools::install_github("wilkelab/cowplot")
install.packages("colorspace", repos = "http://R-Forge.R-project.org")

devtools::install_github("clauswilke/colorblindr")
```

---

```r
p <- ggplot(popgrowth_df,
       aes(x = popgrowth,
           y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
  scale_fill_OkabeIto() +
* theme_void() # not necessary but I like it

*colorblindr::cvd_grid(p)
```

![](w5p1_files/figure-html/okabe-ito2-1.png)

---
class: inverse-orange middle

# Colors for continuous values

---
background-image:url(https://serialmentor.com/dataviz/color_basics_files/figure-html/sequential-scales-1.png)
background-size:contain

# Sequential scale examples

---
# Sequential scales
* Which values are larger/smaller

--
* How distant two values are from each other

--
	+ Scale must be perceptually uniform across its entire range

--
	+ Similar to an interval scale, but for color

--
* Often based on a single .bolder[hue]

--
* Multi-hue sequential scales tend to follow gradients in the natural world

---
class: inverse-red middle
# Common uses of sequential palettes

---
# Heatmaps

First the data:

```r
hm <- diamonds %>%
  select(table, price, depth, carat) %>%
  corrr::correlate() %>%
  pivot_longer(-rowname) %>%
  mutate(name = fct_reorder(name, value),
         rowname = fct_reorder(rowname, value))
hm
```

```
## # A tibble: 16 x 3
##   rowname name       value
##   <fct>   <fct>      <dbl>
## 1 table   table NA
## 2 table   price  0.1271339
## 3 table   depth -0.2957785
## 4 table   carat  0.1816175
## 5 price   table  0.1271339
## 6 price   price NA
## # … with 10 more rows
```

---

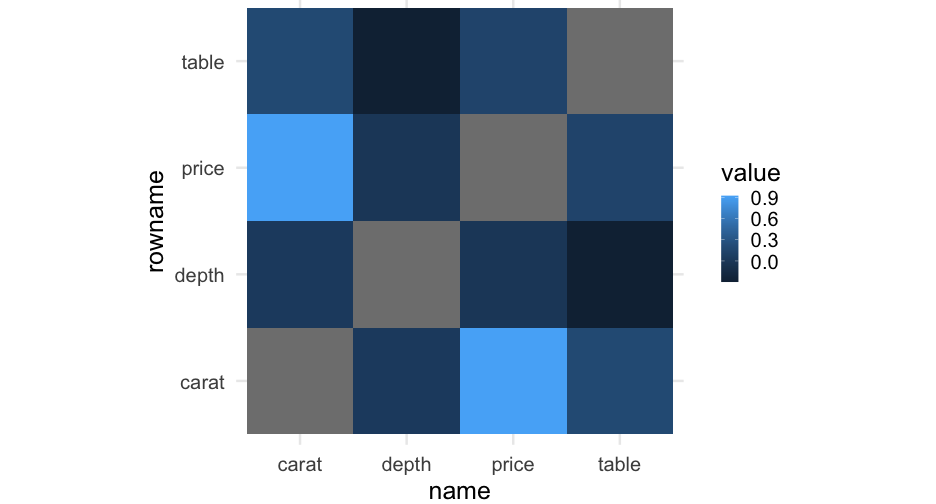

```r
ggplot(hm, aes(name, rowname)) +
  geom_tile(aes(fill = value)) +
  coord_fixed()
```

![](w5p1_files/figure-html/unnamed-chunk-9-1.png)

---

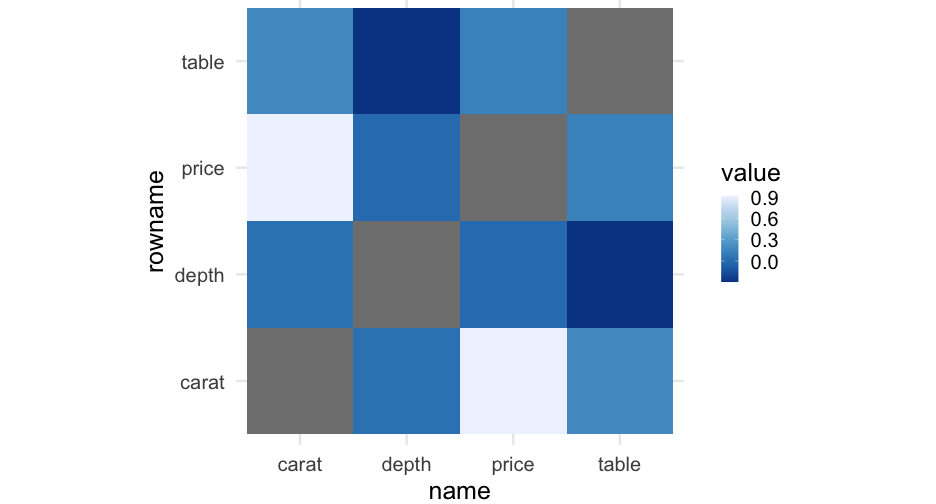

```r
ggplot(hm, aes(name, rowname)) +
  geom_tile(aes(fill = value)) +
  coord_fixed() +
*scale_fill_distiller(palette = "Blues")
```

![](w5p1_files/figure-html/heatmap2-1.png)

---

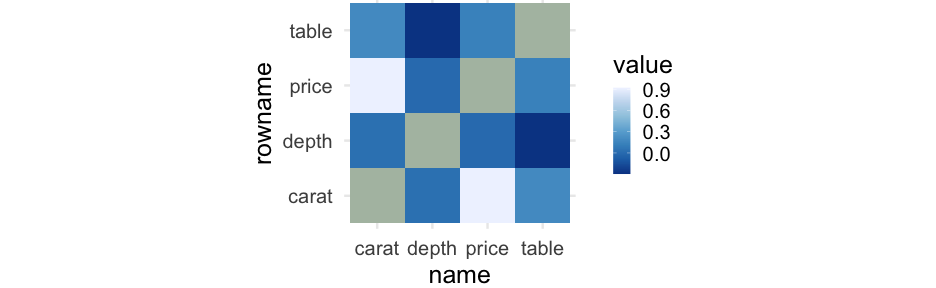

# Change the NA value

In any `scale_*` you can change the `NA` value, including to `"transparent"`.

```r
ggplot(hm, aes(name, rowname)) +
  geom_tile(aes(fill = value)) +
  coord_fixed() +
	scale_fill_distiller(palette = "Blues",
*                     na.value = "#b0bfb0")
```

![](w5p1_files/figure-html/heatmap2b-1.png)

---

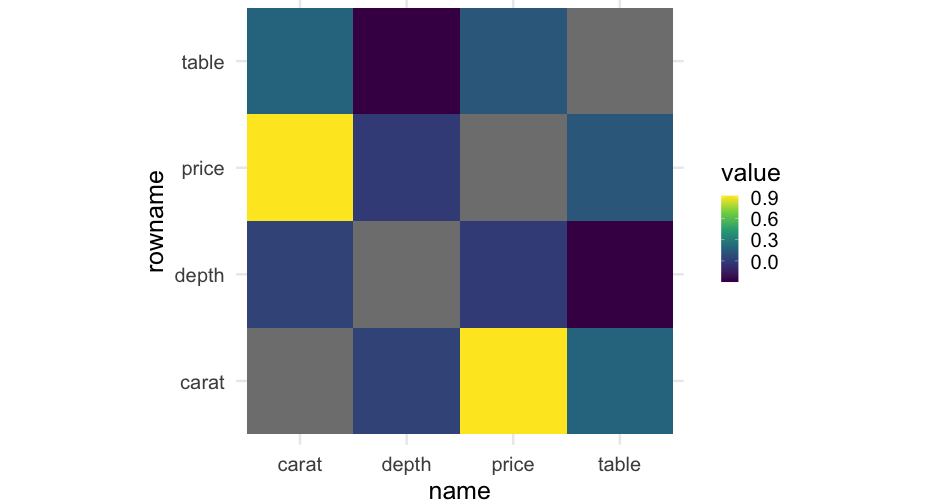

```r
ggplot(hm, aes(name, rowname)) +
  geom_tile(aes(fill = value)) +
  coord_fixed() +
*scale_fill_viridis_c()
```

![](w5p1_files/figure-html/heatmap3-1.png)

---

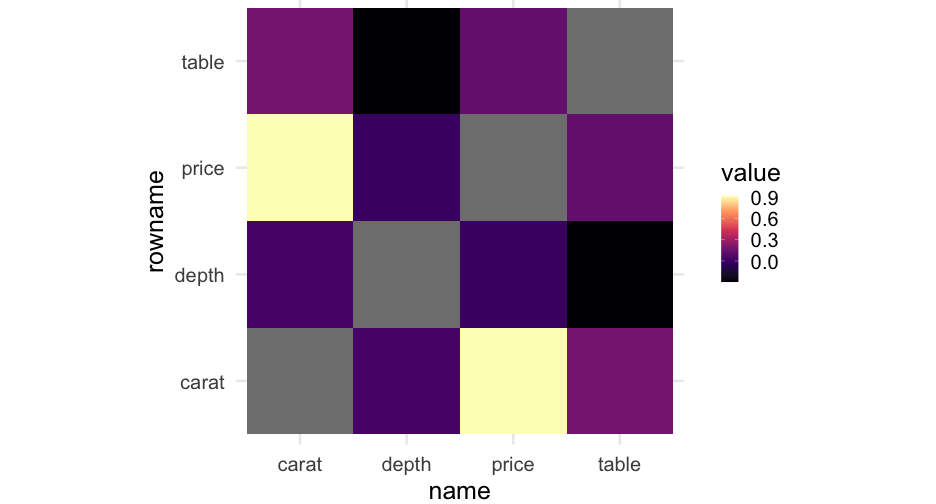

```r
ggplot(hm, aes(name, rowname)) +
  geom_tile(aes(fill = value)) +
  coord_fixed() +
*scale_fill_viridis_c(option = "magma")
```

![](w5p1_files/figure-html/heatmap4-1.png)

`option = c("viridis", "magma", "inferno", "plasma")`

---

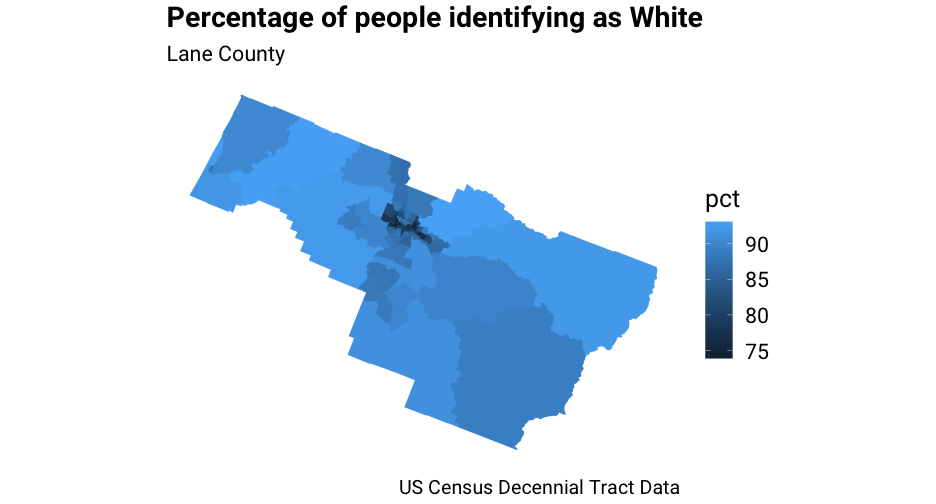

# Choropleths

![](w5p1_files/figure-html/lane1-1.png)

---

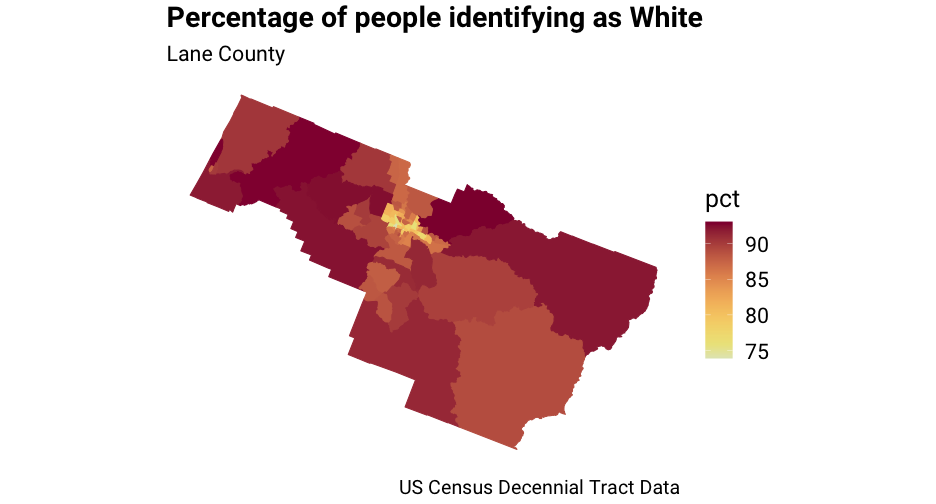

# Heat palette

![](w5p1_files/figure-html/lane2-1.png)

---
# Options
* `scale_fill_continuous_sequential("Heat")`
* `scale_color_continuous_sequential("Heat")`
* `scale_fill_discrete_sequential("Heat")`
* `scale_color_discrete_sequential("Heat")`

---

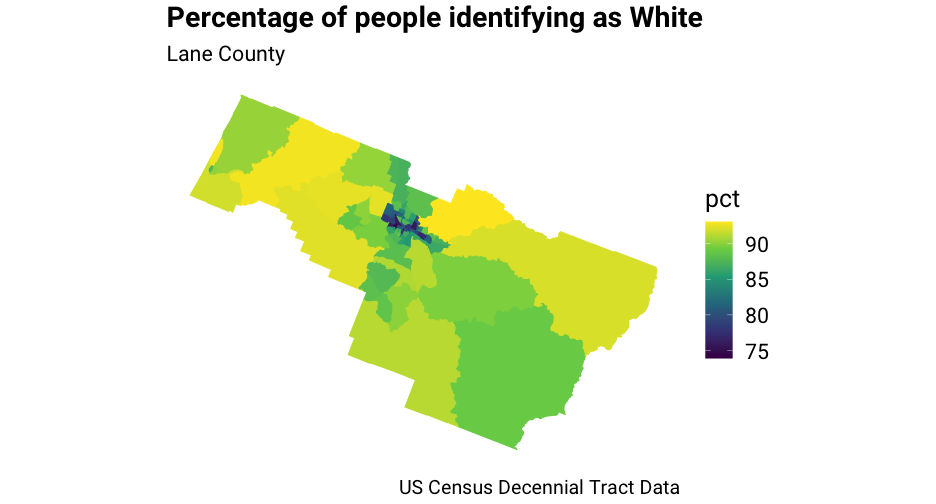

# viridis palette

![](w5p1_files/figure-html/lane3-1.png)

---
background-image:url(https://serialmentor.com/dataviz/color_basics_files/figure-html/diverging-scales-1.png)
background-size:contain

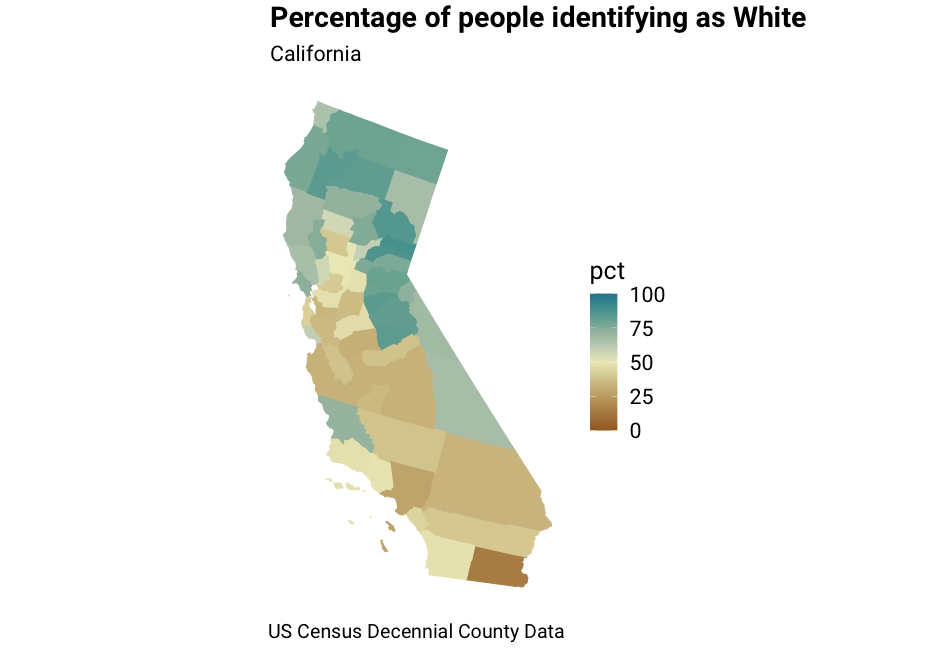

# Diverging palettes

---

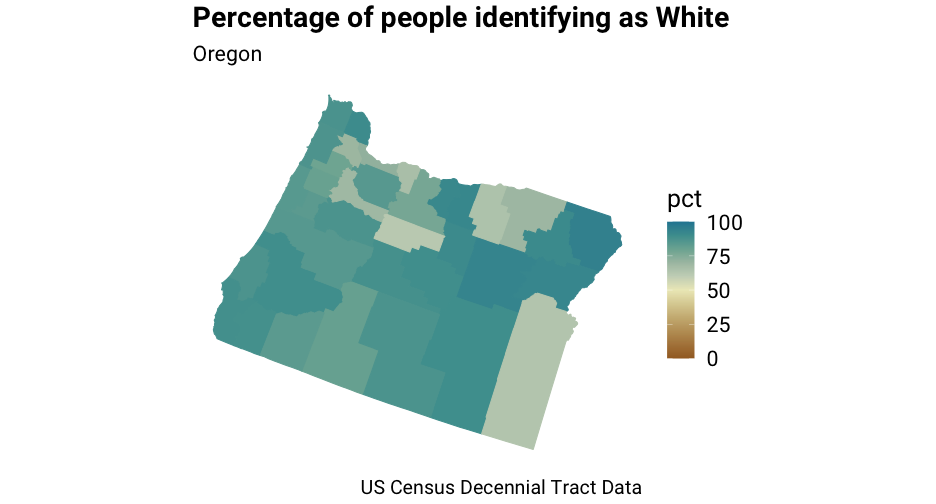

# Earth palette

![](w5p1_files/figure-html/or1-1.png)

---
![](w5p1_files/figure-html/ca1-1.png)

---
class: inverse-blue center middle
# Color as a tool to highlight

---

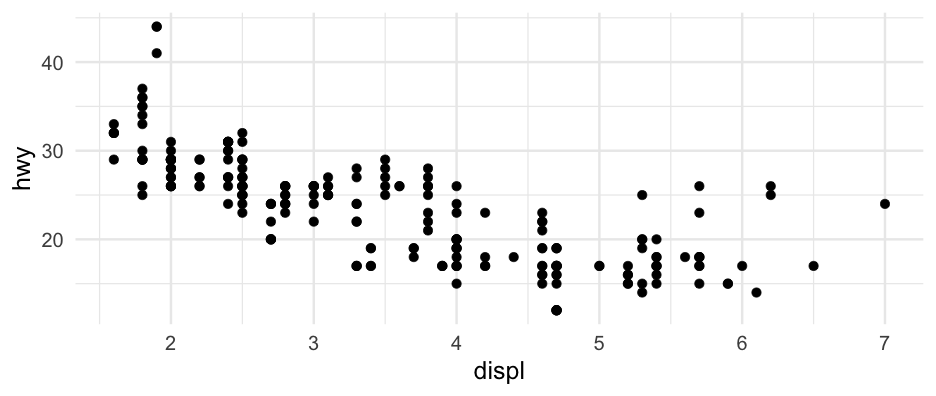

# MPG data
Basic scatterplot of weight to highway mpg

```r
ggplot(mpg, aes(displ, hwy)) +
	geom_point()
```

![](w5p1_files/figure-html/basic-scatter-1.png)

---

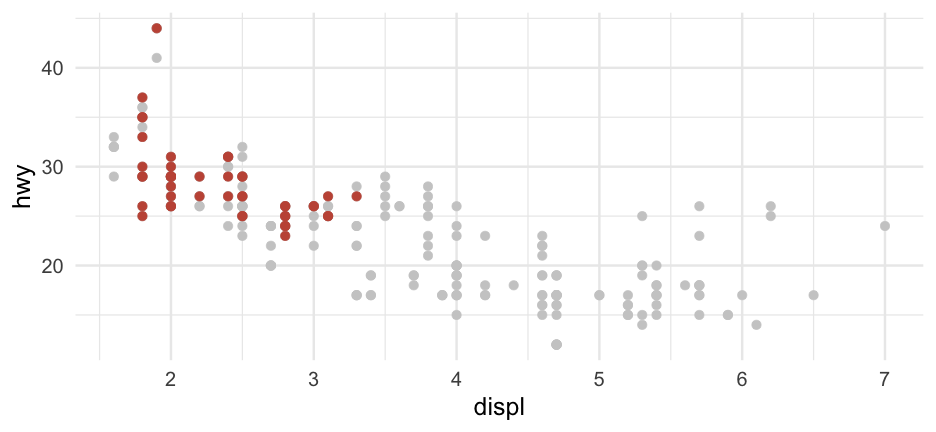

# Highlight compact cars

```r
ggplot(mpg, aes(displ, hwy)) +
	geom_point(color = "gray80") +
	geom_point(data = filter(mpg, class == "compact"),
	           color = "#C55644")
```

![](w5p1_files/figure-html/compact-cars-scatter-1.png)

---

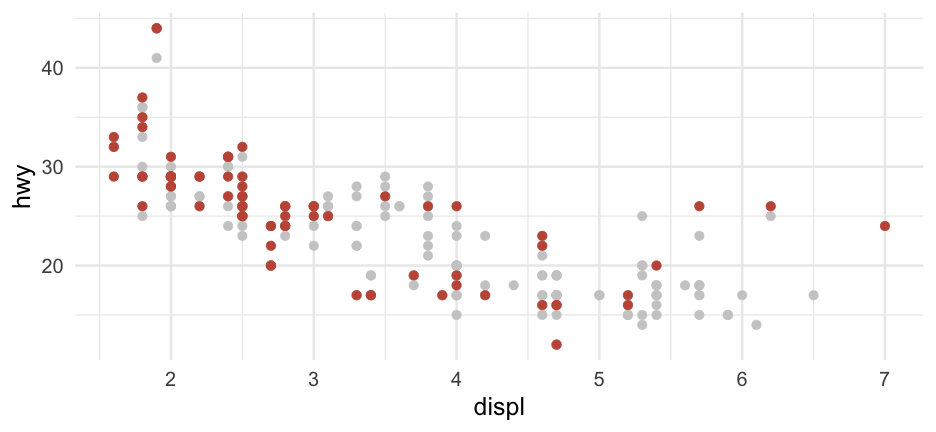

# Highlight manual cars

```r
ggplot(mpg, aes(displ, hwy)) +
	geom_point(color = "gray80") +
	geom_point(data = filter(mpg, str_detect(trans, "manual")),
	           color = "#C55644")
```

![](w5p1_files/figure-html/compact-cars-scatter-h1-1.png)

---
# Back to our states plot
### Highlight Oregon and Washington

---

![](w5p1_files/figure-html/basic-highlight-or-eval-1.png)

---
# Color labels

```r
states <- unique(popgrowth_df$state)

label_color <- ifelse(states == "Oregon" | states == "Washington",
                "#C55644",
                "gray30")
label_color
```

```
##  [1] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"
##  [8] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"
## [15] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"
## [22] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"
## [29] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "#C55644" "gray30"
## [36] "gray30"  "gray30"  "gray30"  "#C55644" "gray30"  "gray30"  "gray30"
## [43] "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"  "gray30"
## [50] "gray30"  "gray30"
```

```r
label_face <- ifelse(states == "Oregon" | states == "Washington",
                "bold",
                "plain")

label_face
```

```
##  [1] "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain"
## [10] "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain"
## [19] "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain" "plain"
## [28] "plain" "plain" "plain" "plain" "plain" "plain" "bold"  "plain" "plain"
## [37] "plain" "plain" "bold"  "plain" "plain" "plain" "plain" "plain" "plain"
## [46] "plain" "plain" "plain" "plain" "plain" "plain"
```

---

```r

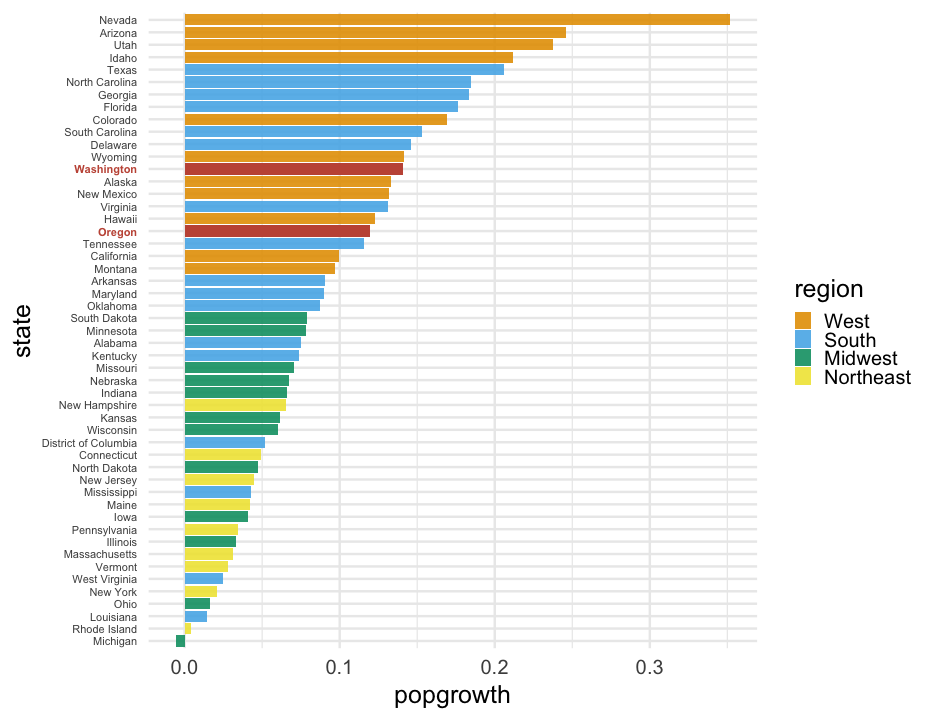

ggplot(popgrowth_df, aes(x = popgrowth, y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
	geom_col(data = filter(popgrowth_df,
	                       state == "Oregon" |
	                       state == "Washington"),
           fill = "#C55644") +
  scale_fill_OkabeIto() +
* theme(axis.text.y = element_text(color = label_color,
*                                  face = label_face))
```

---
![](w5p1_files/figure-html/orwa-highlight-eval-1.png)

---
# Even better

```r
accent_OkabeIto <- palette_OkabeIto[c(1, 2, 7, 4, 5, 3, 6)]
accent_OkabeIto[1:4] <- desaturate(lighten(accent_OkabeIto[1:4], .4), .8)
accent_OkabeIto[5:7] <- darken(accent_OkabeIto[5:7], .3)
gg_color_swatches(7) +
	scale_fill_manual(values = accent_OkabeIto)
```

![](w5p1_files/figure-html/unnamed-chunk-10-1.png)

---

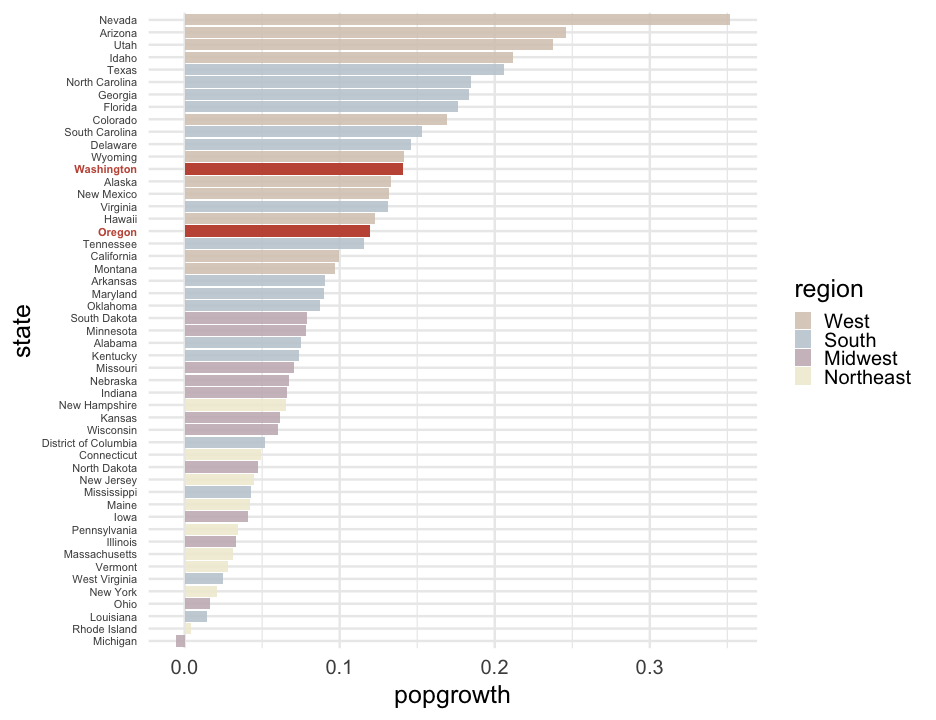

```r
ggplot(popgrowth_df, aes(x = popgrowth, y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
	geom_col(data = filter(popgrowth_df,
	                       state == "Oregon" |
	                       state == "Washington"),
           fill = "#C55644") +
* scale_fill_manual(values = accent_OkabeIto) +
  theme(axis.text.y = element_text(color = label_color,
                                   face = label_face))
```

---
![](w5p1_files/figure-html/orwa-highlight-eval2-1.png)

---

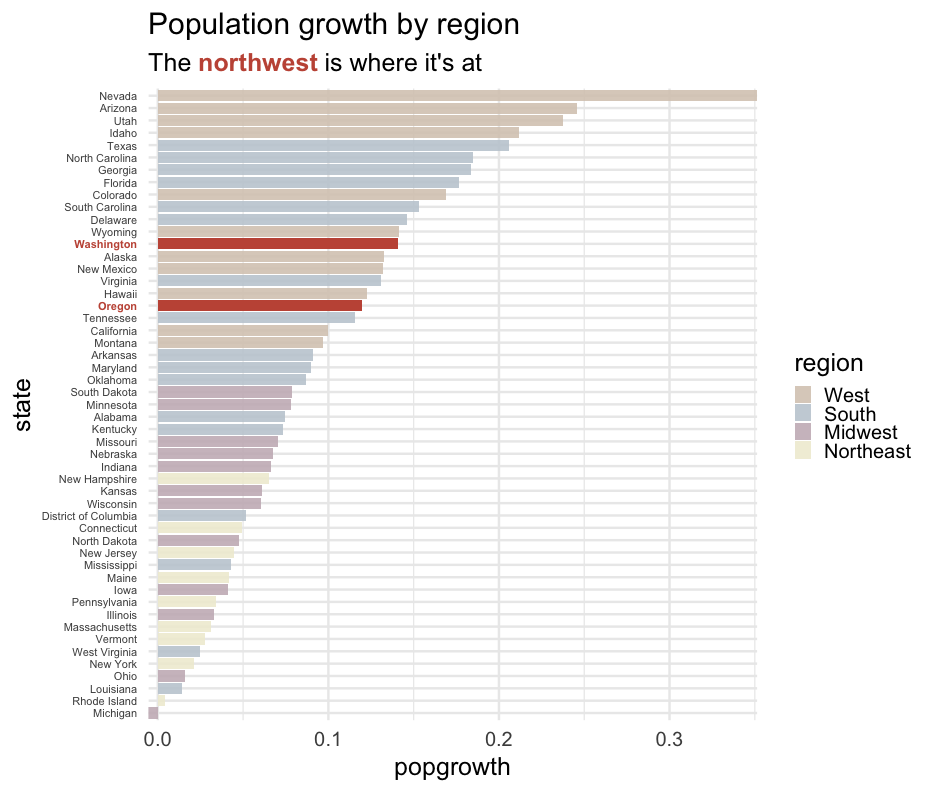

# Or even better

```r
*library(ggtext)
ggplot(popgrowth_df, aes(x = popgrowth, y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
	geom_col(data = filter(popgrowth_df,
	                       state == "Oregon" |
	                       state == "Washington"),
           fill = "#C55644") +
  scale_fill_manual(values = accent_OkabeIto) +
* scale_x_continuous(expand = c(0, 0)) +
  labs(title = "Population growth by region",
       subtitle = "The <span style = 'color: #C55644'>**northwest**</span> is where it's at") +
  theme(axis.text.y = element_text(color = label_color,
                                   face = label_face),
*       plot.subtitle = element_markdown())
```

---

![](w5p1_files/figure-html/unnamed-chunk-12-1.png)

---

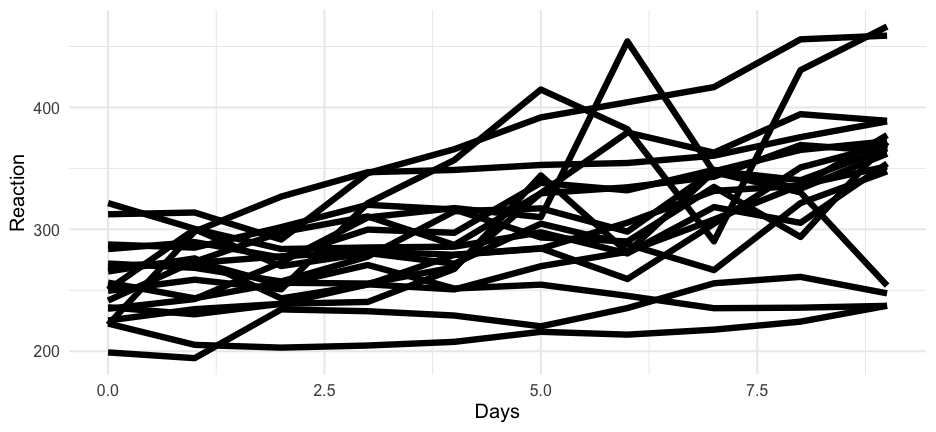

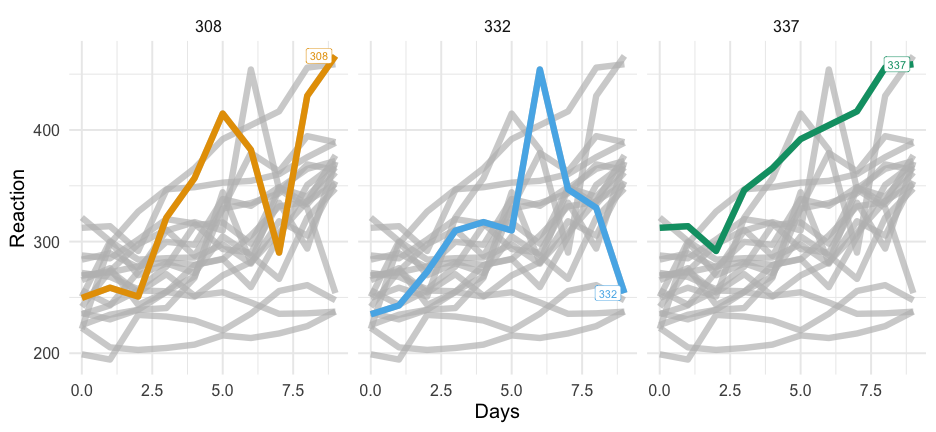

# Last example

```r
data(sleepstudy, package = "lme4")
head(sleepstudy)
```

```
##   Reaction Days Subject
## 1      250    0     308
## 2      259    1     308
## 3      251    2     308
## 4      321    3     308
## 5      357    4     308
## 6      415    5     308
```

---
# Plot by subject

```r
ggplot(sleepstudy, aes(Days, Reaction, group = Subject)) +
	geom_line()
```

![](w5p1_files/figure-html/plot1-1.png)

---

```r

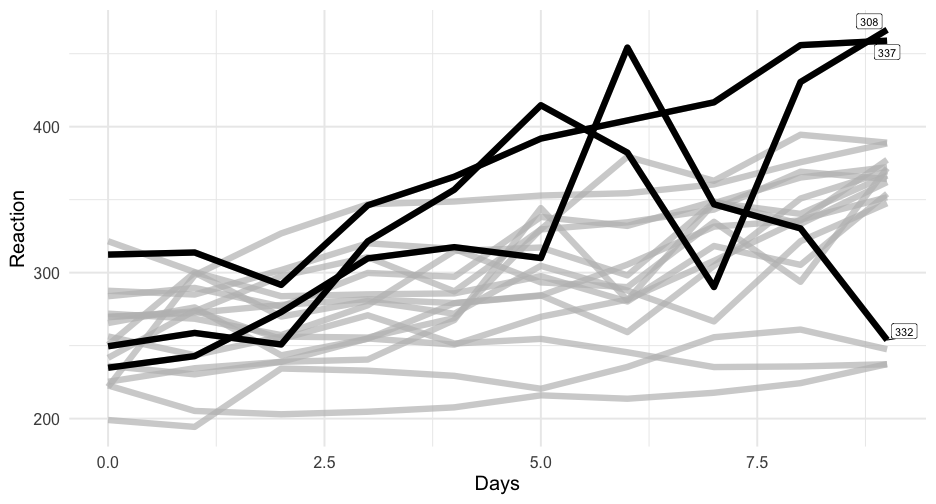

*library(gghighlight)
ggplot(sleepstudy, aes(Days, Reaction, group = Subject)) +
	geom_line() +
*gghighlight(max(Reaction) > 400)
```

![](w5p1_files/figure-html/gghighlight1-1.png)

---

```r

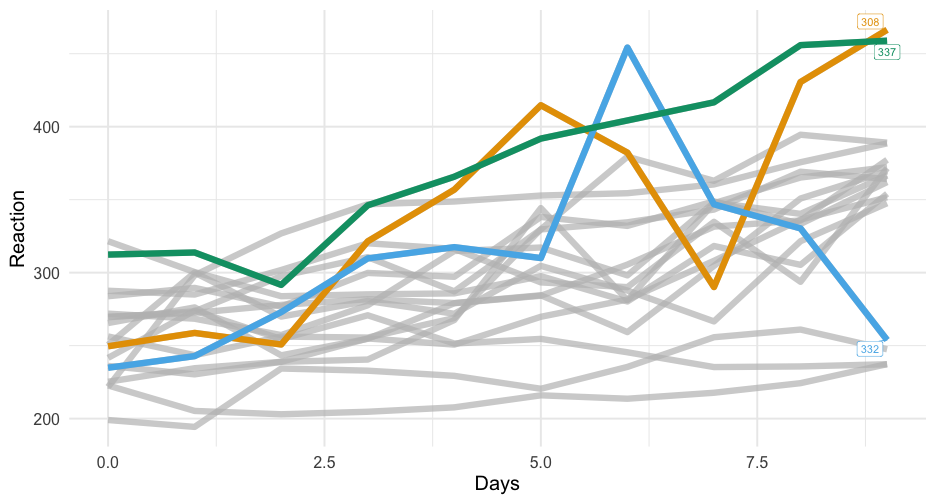

library(gghighlight)
ggplot(sleepstudy, aes(Days, Reaction, color = Subject)) +
	geom_line() +
	gghighlight(max(Reaction) > 400) +
*scale_color_OkabeIto()
```

![](w5p1_files/figure-html/gghighlight2-1.png)

---

```r
library(gghighlight)
ggplot(sleepstudy, aes(Days, Reaction, color = Subject)) +
	geom_line() +
*facet_wrap(~Subject) +
	gghighlight(max(Reaction) > 400) +
	scale_color_OkabeIto()
```

![](w5p1_files/figure-html/gghighlight3-1.png)

---
class: inverse-red center middle
# A few other things to consider

---

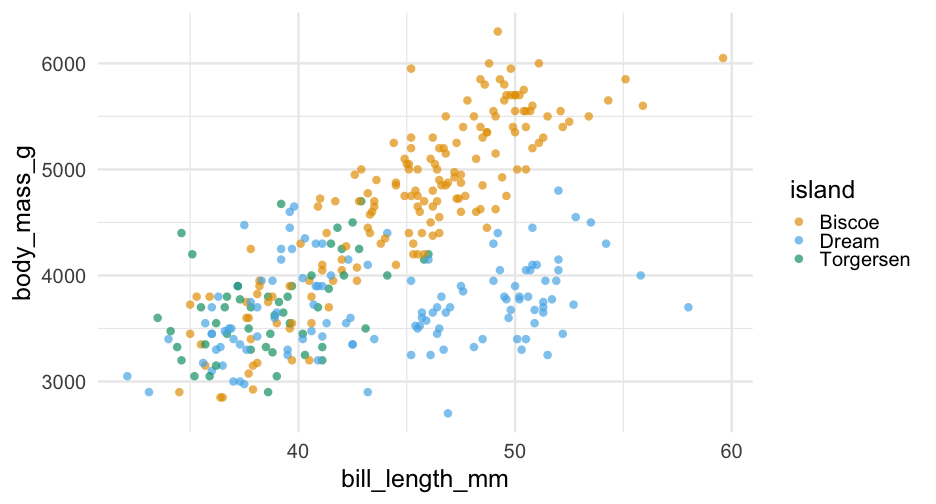

# Double encodings

![](w5p1_files/figure-html/iris-scatter1-1.png)

--
This plot is less than ideal. Why?

---
# Color blindness

![](w5p1_files/figure-html/color-blind-iris_scatter-1.png)

---

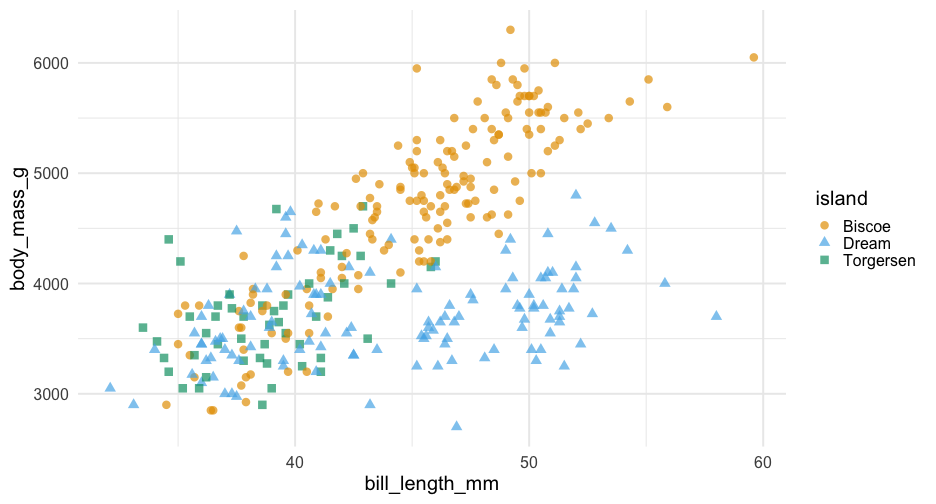

# Better version

![](w5p1_files/figure-html/iris-scatter-1.png)

---
# Color blindness check

![](w5p1_files/figure-html/color-blind-iris_scatter2-1.png)

---
class:inverse-blue center middle
# Common problems with color

---

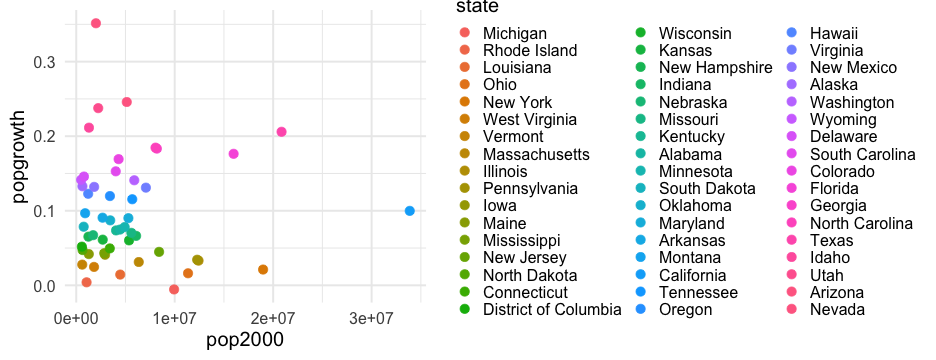

# Too many colors

More than 5-ish categories generally becomes too difficult to track

```r
ggplot(popgrowth_df, aes(pop2000, popgrowth, color = state)) +
	geom_point()
```

![](w5p1_files/figure-html/too-many-colors-1.png)

---

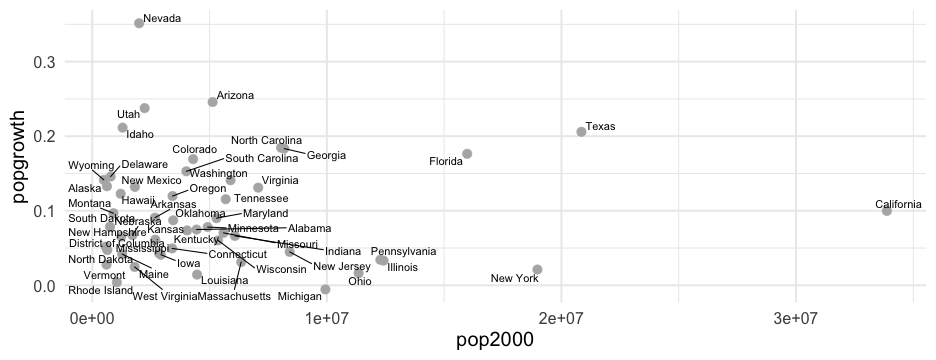

# Use labels

More than 5-ish categories generally becomes too difficult to track

```r
*library(ggrepel)

ggplot(popgrowth_df, aes(pop2000, popgrowth)) +
	geom_point(color = "gray70") +
*geom_text_repel(aes(label = state))
```

![](w5p1_files/figure-html/states-labeled-1.png)

---

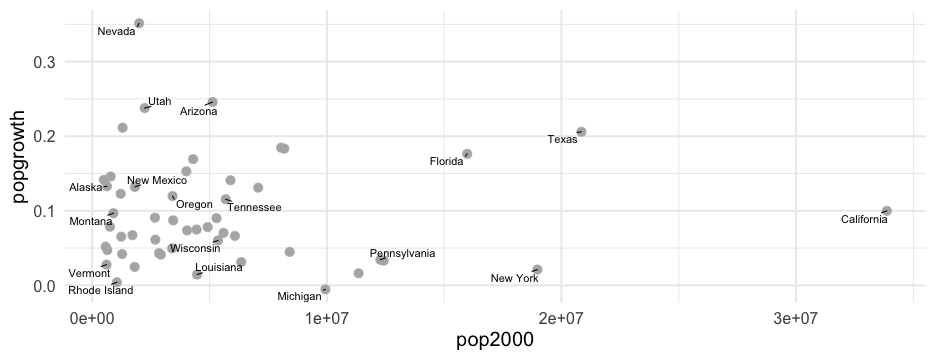

# Better

Get a subset

```r
to_label <- c("Alaska", "Arizona", "California", "Florida", "Wisconsin",
              "Louisiana", "Nevada", "Michigan", "Montana", "New Mexico",
              "Pennsylvania", "New York", "Oregon", "Rhode Island",
              "Tennessee", "Texas", "Utah", "Vermont")
subset_states <- popgrowth_df %>%
	filter(state %in% to_label)
```

---

```r
*library(ggrepel)

ggplot(popgrowth_df, aes(pop2000, popgrowth)) +
	geom_point(color = "gray70") +
*geom_text_repel(aes(label = state),
*                data = subset_states,
*                min.segment.length = 0)
```

![](w5p1_files/figure-html/repeled-labels-1.png)

(still lots more cleaning up we could do here...)

---
# Rainbow palette

```r
rainbow(3)
```

```
## [1] "#FF0000" "#00FF00" "#0000FF"
```

```r
rainbow(7)
```

```
## [1] "#FF0000" "#FFDB00" "#49FF00" "#00FF92" "#0092FF" "#4900FF" "#FF00DB"
```

---

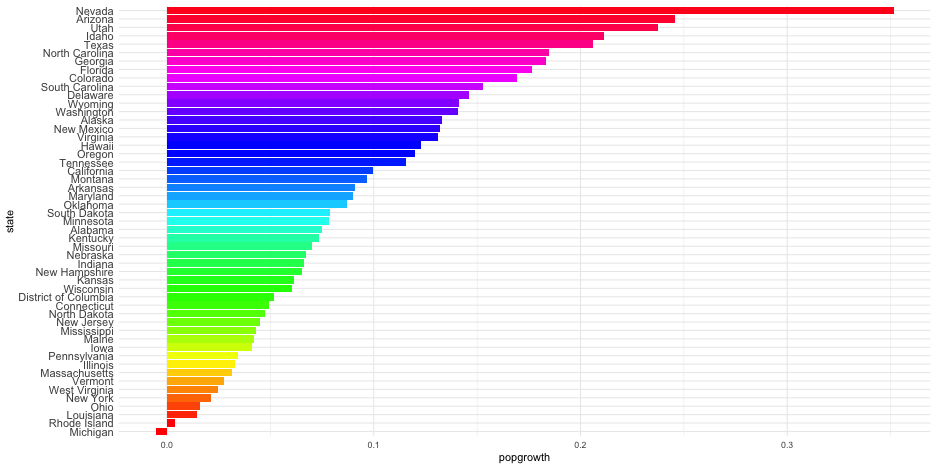

# Pretty! Doesn't work well
See [here](https://www.poynter.org/archive/2013/why-rainbow-colors-arent-always-the-best-options-for-data-visualizations/) for one (of many) articles on why this is the case

```r
ggplot(popgrowth_df, aes(x = popgrowth, y = state)) +
  geom_col(aes(fill = state)) +
  scale_fill_manual(values = rainbow(51)) +
  guides(fill = "none")
```

![](w5p1_files/figure-html/rainbow-pop-1.png)

---
# Last few note on palettes
* Do some research, find what you like **and** what tends to work well

* Check for colorblindness

* Look into http://colorbrewer2.org/

+ `scale_color_brewer()` and `scale_fill_brewer()` ship with ggplot2

---

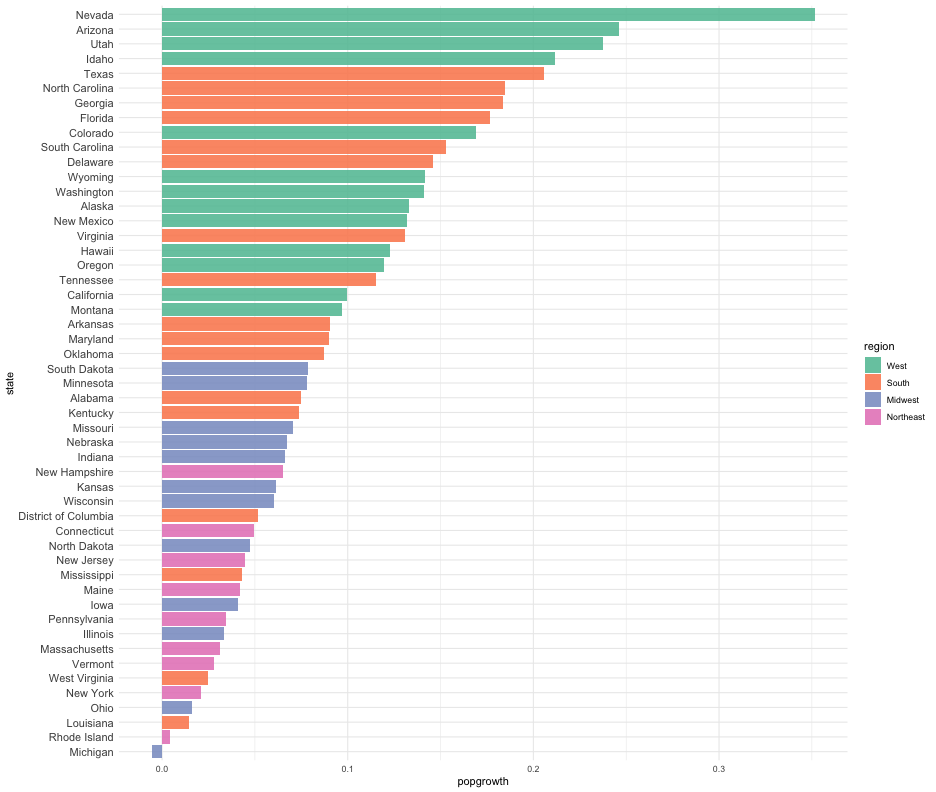

# For example

```r
ggplot(popgrowth_df, aes(x = popgrowth, y = state)) +
  geom_col(aes(fill = region),
           alpha = 0.9) +
* scale_fill_brewer(palette = "Set2")
```

---

![](w5p1_files/figure-html/unnamed-chunk-14-1.png)

---
# Paleteer package

.center[
[![](https://github.com/EmilHvitfeldt/paletteer/raw/master/man/figures/logo.png)](https://github.com/EmilHvitfeldt/paletteer)
]

---
class: inverse-green center middle
# Next time
Lab 3: Colors

Note - this will be our final lab to make sure you have sufficient time for your final projects
