# Joins
### Daniel Anderson
### Week 3, Class 2

---

layout: true

---
# Learning Objectives

* Understand and be able to identify keys

* Understand different types of joins
  + left, right, inner, full
  + one-to-one, one-to-many

* Understand common ways joins fail

* Understand the difference between mutating and filtering joins

---
# Before we get started
* Today we'll talk about both **mutating** and **filtering** joins

* Mutating joins are more common, but filtering joins can be really powerful

* Mutating joins add columns to a dataset

--
### What if I want to add rows?
* Not technically a join (no key involved, which we'll talk about momentarily)

---
# Quick example, binding rows

```r
g3 <- tibble(sid = 1:3,
             grade = rep(3, 3),
             score = as.integer(rnorm(3, 200,10)))

g4 <- tibble(sid = 9:11,
             grade = rep(4, 3),
             score = as.integer(rnorm(3, 200,10)))
```

.pull-left[

```r
g3
```

```
## # A tibble: 3 x 3
##     sid grade score
##   <int> <dbl> <int>
## 1     1     3   203
## 2     2     3   180
## 3     3     3   191
```
]

.pull-left[

```r
g4
```

```
## # A tibble: 3 x 3
##     sid grade score
##   <int> <dbl> <int>
## 1     9     4   213
## 2    10     4   206
## 3    11     4   210
```
]

---
# `bind_rows`
* In examples like the previous datasets, we just want to "staple" the rows
together.

* We can do so with `bind_rows`.

```r
bind_rows(g3, g4)
```

```
## # A tibble: 6 x 3
##     sid grade score
##   <int> <dbl> <int>
## 1     1     3   203
## 2     2     3   180
## 3     3     3   191
## 4     9     4   213
## 5    10     4   206
## 6    11     4   210
```

---
# Optional `.id` argument
* What if we knew the grade, but didn't have a variable in each dataset already?
* Use `.id` to add an index for each dataset

```r
bind_rows(g3[ ,-2], g4[ ,-2], .id = "dataset")
```

```
## # A tibble: 6 x 3
##   dataset   sid score
##   <chr>   <int> <int>
## 1 1           1   203
## 2 1           2   180
## 3 1           3   191
## 4 2           9   213
## 5 2          10   206
## 6 2          11   210
```

---

```r
bind_rows(g3[ ,-2], g4[ ,-2], .id = "dataset") %>%
  mutate(grade = ifelse(dataset == 1, 3, 4))
```

```
## # A tibble: 6 x 4
##   dataset   sid score grade
##   <chr>   <int> <int> <dbl>
## 1 1           1   203     3
## 2 1           2   180     3
## 3 1           3   191     3
## 4 2           9   213     4
## 5 2          10   206     4
## 6 2          11   210     4
```

---
# Even better usage

```r
bind_rows(g3 = g3[ ,-2], g4 = g4[ ,-2], .id = "grade")
```

```
## # A tibble: 6 x 3
##   grade   sid score
##   <chr> <int> <int>
## 1 g3        1   203
## 2 g3        2   180
## 3 g3        3   191
## 4 g4        9   213
## 5 g4       10   206
## 6 g4       11   210
```

---
## What if columns don't match exactly?
Pad with `NA`

```r
bind_rows(g3, g4[ ,-2], .id = "dataset")
```

```
## # A tibble: 6 x 4
##   dataset   sid grade score
##   <chr>   <int> <dbl> <int>
## 1 1           1     3   203
## 2 1           2     3   180
## 3 1           3     3   191
## 4 2           9    NA   213
## 5 2          10    NA   206
## 6 2          11    NA   210
```

---
# Last note - read in a bunch of files
* We'll talk about this a lot more in the next course
* `purrr::map_df` uses `bind_rows` in the background

```r
dir.create("tmp")

mtcars %>%
  split(.$cyl) %>%
  walk2(c("tmp/cyl4.csv", "tmp/cyl6.csv", "tmp/cyl8.csv"),
        write_csv)

list.files("tmp")
```

```
## [1] "cyl4.csv" "cyl6.csv" "cyl8.csv"
```

---
# Read in files

Use `purrr::map_df` with the file names
Note `fs::dir_ls` is equivalent to `list.files`, but plays nicer with
  `purrr::map_df`

```r
new_mtcars <- map_df(fs::dir_ls("tmp"), rio::import, setclass = "tbl_df",
                     .id = "file")
new_mtcars %>%
  select(file, mpg, cyl) %>%
  slice(1:3)
```

```
## # A tibble: 3 x 3
##   file           mpg   cyl
##   <chr>        <dbl> <int>
## 1 tmp/cyl4.csv  22.8     4
## 2 tmp/cyl4.csv  24.4     4
## 3 tmp/cyl4.csv  22.8     4
```

```r
unlink("tmp", recursive = TRUE)
```

---
class: inverse-blue center middle
# Joins
(not to be confused with row binding)

---
# Keys
* Uniquely identify rows in a dataset

* Variable(s) in common between two datasets to be joined

+ A key can be more than one variable

--
### Types of keys
* Small distinction that you probably won't have to worry about much, but is
worth mentioning:
  + **Primary keys:** Uniquely identify observations in their dataset
  + **Foreign keys:** Uniquely identify observations in other datasets.

---
# What's the primary key here?

```r
library(rio)
library(here)
ecls <- import(here("data", "ecls-k_samp.sav"),
               setclass = "tbl_df") %>%
    characterize()
ecls
```

```
## # A tibble: 984 x 33
##    child_id teacher_id school_id k_type   school_type sex
##    <chr>    <chr>      <chr>     <chr>    <chr>       <chr>
##  1 0842021C 0842T02    0842      full-day public      male
##  2 0905002C 0905T01    0905      full-day private     male
##  3 0150012C 0150T01    0150      full-day private     female
##  4 0556009C 0556T01    0556      full-day private     female
##  5 0089013C 0089T04    0089      full-day public      male
##  6 1217001C 1217T13    1217      half-day public      female
##  7 1092008C 1092T01    1092      half-day public      female
##  8 0083007C 0083T16    0083      full-day public      male
##  9 1091005C 1091T02    1091      half-day private     male
## 10 2006006C 2006T01    2006      full-day private     male
## # … with 974 more rows, and 27 more variables: ethnic <chr>, famtype <chr>,
## #   numsibs <dbl>, SES_cont <dbl>, SES_cat <chr>, age <dbl>, T1RSCALE <dbl>,
## #   T1MSCALE <dbl>, T1GSCALE <dbl>, T2RSCALE <dbl>, T2MSCALE <dbl>,
## #   T2GSCALE <dbl>, IRTreadgain <dbl>, IRTmathgain <dbl>, IRTgkgain <dbl>,
## #   T1ARSLIT <dbl>, T1ARSMAT <dbl>, T1ARSGEN <dbl>, T2ARSLIT <dbl>,
## #   T2ARSMAT <dbl>, T2ARSGEN <dbl>, ARSlitgain <dbl>, ARSmathgain <dbl>,
## #   ARSgkgain <dbl>, testdate1 <date>, testdate2 <date>, elapse <dbl>
```

---
# Double-checking

```r
ecls %>%
    count(child_id)
```

```
## # A tibble: 984 x 2
##    child_id     n
##  * <chr>    <int>
##  1 0001010C     1
##  2 0002010C     1
##  3 0009005C     1
##  4 0009014C     1
##  5 0009026C     1
##  6 0013003C     1
##  7 0016004C     1
##  8 0016009C     1
##  9 0022005C     1
## 10 0022014C     1
## # … with 974 more rows
```

---

```r
ecls %>%
    count(child_id) %>%
    filter(n > 1)
```

```
## # A tibble: 0 x 2
## # … with 2 variables: child_id <chr>, n <int>
```

---
# What about here?

```r
income_ineq <- read_csv(here("data", "incomeInequality_tidy.csv"))
print(income_ineq, n = 15)
```

```
## # A tibble: 726 x 6
##     Year Number.thousands realGDPperCap PopulationK percentile     income
##    <dbl>            <dbl>         <dbl>       <dbl>      <dbl>      <dbl>
##  1  1947            37237      14117.32      144126      20      14243
##  2  1947            37237      14117.32      144126      40      22984
##  3  1947            37237      14117.32      144126      60      31166
##  4  1947            37237      14117.32      144126      80      44223
##  5  1947            37237      14117.32      144126      50      26764.14
##  6  1947            37237      14117.32      144126      90      41477
##  7  1947            37237      14117.32      144126      95      54172
##  8  1947            37237      14117.32      144126      99     134415
##  9  1947            37237      14117.32      144126      99.5   203001
## 10  1947            37237      14117.32      144126      99.9   479022
## 11  1947            37237      14117.32      144126      99.99 1584506
## 12  1948            38624      14451.94      146631      20      13779
## 13  1948            38624      14451.94      146631      40      22655
## 14  1948            38624      14451.94      146631      60      30248
## 15  1948            38624      14451.94      146631      80      42196
## # … with 711 more rows
```

---

```r
income_ineq %>%
    count(Year, percentile) %>%
    filter(n > 1)
```

```
## # A tibble: 0 x 3
## # … with 3 variables: Year <dbl>, percentile <dbl>, n <int>
```

---
# Sometimes there is no key
These tables have an *implicit* id - the row numbers. For example:

```r
install.packages("nycflights13")
library(nycflights13)
```

```r
head(flights)
```

```
## # A tibble: 6 x 19
##    year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
##   <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
## 1  2013     1     1      517            515         2      830            819
## 2  2013     1     1      533            529         4      850            830
## 3  2013     1     1      542            540         2      923            850
## 4  2013     1     1      544            545        -1     1004           1022
## 5  2013     1     1      554            600        -6      812            837
## 6  2013     1     1      554            558        -4      740            728
## # … with 11 more variables: arr_delay <dbl>, carrier <chr>, flight <int>,
## #   tailnum <chr>, origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>,
## #   hour <dbl>, minute <dbl>, time_hour <dttm>
```

---

```r
flights %>%
  count(year, month, day, flight, tailnum) %>%
  filter(n > 1)
```

```
## # A tibble: 11 x 6
##     year month   day flight tailnum     n
##    <int> <int> <int>  <int> <chr>   <int>
##  1  2013     2     9    303 <NA>        2
##  2  2013     2     9    655 <NA>        2
##  3  2013     2     9   1623 <NA>        2
##  4  2013     6     8   2269 N487WN      2
##  5  2013     6    15   2269 N230WN      2
##  6  2013     6    22   2269 N440LV      2
##  7  2013     6    29   2269 N707SA      2
##  8  2013     7     6   2269 N259WN      2
##  9  2013     8     3   2269 N446WN      2
## 10  2013     8    10   2269 N478WN      2
## 11  2013    12    15    398 <NA>        2
```

---
# Create a key
* If there is no key, it's often helpful to add one. These are called *surrogate* keys.

```r
flights <- flights %>%
  rowid_to_column()

flights %>%
  select(1:3, ncol(flights))
```

```
## # A tibble: 336,776 x 4
##    rowid  year month time_hour
##    <int> <int> <int> <dttm>
##  1     1  2013     1 2013-01-01 05:00:00
##  2     2  2013     1 2013-01-01 05:00:00
##  3     3  2013     1 2013-01-01 05:00:00
##  4     4  2013     1 2013-01-01 05:00:00
##  5     5  2013     1 2013-01-01 06:00:00
##  6     6  2013     1 2013-01-01 05:00:00
##  7     7  2013     1 2013-01-01 06:00:00
##  8     8  2013     1 2013-01-01 06:00:00
##  9     9  2013     1 2013-01-01 06:00:00
## 10    10  2013     1 2013-01-01 06:00:00
## # … with 336,766 more rows
```

---
class: inverse-red middle
# Mutating joins

---
# Mutating joins
* In *tidyverse*, we use `mutate()` to create new variables within a dataset.

* A mutating join works similarly, in that we're adding new variables to the existing dataset through a join.

* Two tables of data joined by a common key

---
# Four types of joins

* `left_join`: Keep all the data in the left dataset, drop any non-matching cases from the right dataset.

* `right_join`: Keep all the data in the right dataset, drop any non-matching cases from the left dataset.

* `inner_join`: Keep only data that matches in both datasets

* `full_join`: Keep all the data in both datasets. This is also sometimes referred to as an *outer* join.

--
If the keys match exactly in the two tables (datasets), all of these will
result in the .bolder[exact] same result.

---
# Using joins to recode

Say you have a dataset like this

```r
set.seed(1)
disab_codes <- c("00", "10", "20", "40", "43", "50", "60",
                 "70", "74", "80", "82", "90", "96", "98")
dis_tbl <- tibble(
  sid = 1:200,
  dis_code = sample(disab_codes, 200, replace = TRUE),
  score = as.integer(rnorm(200, 200, 10))
  )
head(dis_tbl)
```

```
## # A tibble: 6 x 3
##     sid dis_code score
##   <int> <chr>    <int>
## 1     1 74         190
## 2     2 40         200
## 3     3 60         200
## 4     4 00         183
## 5     5 10         210
## 6     6 96         188
```

---
# Codes

<br/>

.pull-left[
| Code | Disability|
|:----:|:----------|
| 00	 |'Not Applicable' |
| 10	 |'Intellectual Disability' |
| 20	 |'Hearing Impairment'|
| 40	 |'Visual Impairment'|
| 43	 |'Deaf-Blindness'|
| 50	 |'Communication Disorder'|
| 60	 |'Emotional Disturbance'|
| 70	 |'Orthopedic Impairment'|
| 74	 |'Traumatic Brain Injury'|

]

.pull-right[

| Code | Disability|
|:----:|:----------|
| 80	 |'Other Health Impairments'|
| 82	 |'Autism Spectrum Disorder'|
| 90	 |'Specific Learning Disability'|
| 96	 |'Developmental Delay 0-2yr'|
| 98	 |'Developmental Delay 3-4yr'|

]

---
# One method

```r
dis_tbl %>%
  mutate(disability = case_when(
    dis_code == "10" ~ "Intellectual Disability",
    dis_code == "20" ~ 'Hearing Impairment',
    ...,
    TRUE ~ "Not Applicable"
    )
  )
```

---
# Joining method

```r
dis_code_tbl <- tibble(
  dis_code = c(
    "00", "10", "20", "40", "43", "50", "60",
    "70", "74", "80", "82", "90", "96", "98"
    ),
  disability = c(
    'Not Applicable', 'Intellectual Disability',
    'Hearing Impairment', 'Visual Impairment',
    'Deaf-Blindness', 'Communication Disorder',
    'Emotional Disturbance', 'Orthopedic Impairment',
    'Traumatic Brain Injury', 'Other Health Impairments',
    'Autism Spectrum Disorder', 'Specific Learning Disability',
    'Developmental Delay 0-2yr', 'Developmental Delay 3-4yr'
    )
  )
```

---

```r
dis_code_tbl
```

```
## # A tibble: 14 x 2
##    dis_code disability
##    <chr>    <chr>
##  1 00       Not Applicable
##  2 10       Intellectual Disability
##  3 20       Hearing Impairment
##  4 40       Visual Impairment
##  5 43       Deaf-Blindness
##  6 50       Communication Disorder
##  7 60       Emotional Disturbance
##  8 70       Orthopedic Impairment
##  9 74       Traumatic Brain Injury
## 10 80       Other Health Impairments
## 11 82       Autism Spectrum Disorder
## 12 90       Specific Learning Disability
## 13 96       Developmental Delay 0-2yr
## 14 98       Developmental Delay 3-4yr
```

---
# Join the tables

```r
left_join(dis_tbl, dis_code_tbl)
```

```
## Joining, by = "dis_code"
```

```
## # A tibble: 200 x 4
##      sid dis_code score disability
##    <int> <chr>    <int> <chr>
##  1     1 74         190 Traumatic Brain Injury
##  2     2 40         200 Visual Impairment
##  3     3 60         200 Emotional Disturbance
##  4     4 00         183 Not Applicable
##  5     5 10         210 Intellectual Disability
##  6     6 96         188 Developmental Delay 0-2yr
##  7     7 60         203 Emotional Disturbance
##  8     8 82         204 Autism Spectrum Disorder
##  9     9 98         201 Developmental Delay 3-4yr
## 10    10 10         198 Intellectual Disability
## # … with 190 more rows
```

---
class: inverse-orange middle
# Imperfect key match?

---
# Consider the following

```r
gender <- tibble(key = 1:3, male = rbinom(3, 1, .5))
sped <- tibble(key = c(1, 2, 4), sped = rbinom(3, 1, .5))
```

.pull-left[

```r
gender
```

```
## # A tibble: 3 x 2
##     key  male
##   <int> <int>
## 1     1     0
## 2     2     1
## 3     3     0
```
]

.pull-right[

```r
sped
```

```
## # A tibble: 3 x 2
##     key  sped
##   <dbl> <int>
## 1     1     0
## 2     2     1
## 3     4     0
```
]

---
# `left_join()`?

```r
left_join(gender, sped)
```

```
## # A tibble: 3 x 3
##     key  male  sped
##   <dbl> <int> <int>
## 1     1     0     0
## 2     2     1     1
## 3     3     0    NA
```

--
# `right_join()`?

```r
right_join(gender, sped)
```

```
## # A tibble: 3 x 3
##     key  male  sped
##   <dbl> <int> <int>
## 1     1     0     0
## 2     2     1     1
## 3     4    NA     0
```

---
# `inner_join()`?

```r
inner_join(gender, sped)
```

```
## # A tibble: 2 x 3
##     key  male  sped
##   <dbl> <int> <int>
## 1     1     0     0
## 2     2     1     1
```

--
# `full_join()`?

```r
full_join(gender, sped)
```

```
## # A tibble: 4 x 3
##     key  male  sped
##   <dbl> <int> <int>
## 1     1     0     0
## 2     2     1     1
## 3     3     0    NA
## 4     4    NA     0
```

---
background-image:url(img/joins.png)
background-size:contain

.footnote[From [r4ds](https://r4ds.had.co.nz)]

---
class: inverse-red middle
# Animations
All of the following animations were created by Garrick Aden-Buie and can
be found [here](https://github.com/gadenbuie/tidyexplain)

---
# Animated `left_join()`

![](https://github.com/gadenbuie/tidyexplain/raw/master/images/left-join.gif)

---
# Animated `right_join`

![](https://github.com/gadenbuie/tidyexplain/raw/master/images/right-join.gif)

---
# Animated `inner_join`

![](https://github.com/gadenbuie/tidyexplain/raw/master/images/inner-join.gif)

---
# Animated `full_join`

![](https://github.com/gadenbuie/tidyexplain/raw/master/images/full-join.gif)

---
# What if the key is not unique?

* Not a problem, as long as they are unique in .bolder[one] of the tables.
  + In this case, it's called a one-to-many join

<br/>

---
# Animated one-to-many join

![](https://github.com/gadenbuie/tidyexplain/raw/master/images/left-join-extra.gif)

---
# Example

A dataset with school IDs

```r
stu <- tibble(
  sid = 1:9,
  scid = c(1, 1, 1, 1, 2, 2, 3, 3, 3),
  score = c(10, 12, 15, 8,  9, 11, 12, 15, 17)
  )
stu
```

```
## # A tibble: 9 x 3
##     sid  scid score
##   <int> <dbl> <dbl>
## 1     1     1    10
## 2     2     1    12
## 3     3     1    15
## 4     4     1     8
## 5     5     2     9
## 6     6     2    11
## 7     7     3    12
## 8     8     3    15
## 9     9     3    17
```

---
A school-level dataset

```r
schl <- tibble(
  scid = 1:3,
  stu_tch_ratio = c(22.05, 31.14, 24.87),
  per_pupil_spending = c(15741.08, 11732.24, 13027.88)
)
schl
```

```
## # A tibble: 3 x 3
##    scid stu_tch_ratio per_pupil_spending
##   <int>         <dbl>              <dbl>
## 1     1         22.05           15741.08
## 2     2         31.14           11732.24
## 3     3         24.87           13027.88
```

---
# One to many

```r
left_join(stu, schl)
```

```
## # A tibble: 9 x 5
##     sid  scid score stu_tch_ratio per_pupil_spending
##   <int> <dbl> <dbl>         <dbl>              <dbl>
## 1     1     1    10         22.05           15741.08
## 2     2     1    12         22.05           15741.08
## 3     3     1    15         22.05           15741.08
## 4     4     1     8         22.05           15741.08
## 5     5     2     9         31.14           11732.24
## 6     6     2    11         31.14           11732.24
## 7     7     3    12         24.87           13027.88
## 8     8     3    15         24.87           13027.88
## 9     9     3    17         24.87           13027.88
```

---
## What if key is not unique to either table?
Generally this is an error
Result is probably not going to be what you want (cartesian product).

---
# Example

```r
seasonal_means <- tibble(
  scid = rep(1:3, each = 3),
  season = rep(c("fall", "winter", "spring"), 3),
  mean = rnorm(3*3)
)

seasonal_means
```

```
## # A tibble: 9 x 3
##    scid season       mean
##   <int> <chr>       <dbl>
## 1     1 fall    0.3447951
## 2     1 winter  1.539648
## 3     1 spring -0.3295142
## 4     2 fall    0.9483894
## 5     2 winter -0.4792556
## 6     2 spring -1.514887
## 7     3 fall    0.4345367
## 8     3 winter -0.5195367
## 9     3 spring -0.8345590
```

---

```r
left_join(stu, seasonal_means)
```

```
## # A tibble: 27 x 5
##      sid  scid score season       mean
##    <int> <dbl> <dbl> <chr>       <dbl>
##  1     1     1    10 fall    0.3447951
##  2     1     1    10 winter  1.539648
##  3     1     1    10 spring -0.3295142
##  4     2     1    12 fall    0.3447951
##  5     2     1    12 winter  1.539648
##  6     2     1    12 spring -0.3295142
##  7     3     1    15 fall    0.3447951
##  8     3     1    15 winter  1.539648
##  9     3     1    15 spring -0.3295142
## 10     4     1     8 fall    0.3447951
## # … with 17 more rows
```

---
# How do we fix this?

--
![](https://media.giphy.com/media/jPAdK8Nfzzwt2/giphy.gif)

In some cases, the solution is obvious. In others, it's not. But **you must have at least one unique key** to join the datasets.

---
# In this case
Move the dataset to wide before joining

--
### Move to wide

```r
seasonal_means_wide <- seasonal_means %>%
  pivot_wider(names_from = "season",
              values_from = "mean")

seasonal_means_wide
```

```
## # A tibble: 3 x 4
##    scid      fall     winter     spring
##   <int>     <dbl>      <dbl>      <dbl>
## 1     1 0.3447951  1.539648  -0.3295142
## 2     2 0.9483894 -0.4792556 -1.514887
## 3     3 0.4345367 -0.5195367 -0.8345590
```

---
# Join

One to many join

```r
left_join(stu, seasonal_means_wide)
```

```
## # A tibble: 9 x 6
##     sid  scid score      fall     winter     spring
##   <int> <dbl> <dbl>     <dbl>      <dbl>      <dbl>
## 1     1     1    10 0.3447951  1.539648  -0.3295142
## 2     2     1    12 0.3447951  1.539648  -0.3295142
## 3     3     1    15 0.3447951  1.539648  -0.3295142
## 4     4     1     8 0.3447951  1.539648  -0.3295142
## 5     5     2     9 0.9483894 -0.4792556 -1.514887
## 6     6     2    11 0.9483894 -0.4792556 -1.514887
## 7     7     3    12 0.4345367 -0.5195367 -0.8345590
## 8     8     3    15 0.4345367 -0.5195367 -0.8345590
## 9     9     3    17 0.4345367 -0.5195367 -0.8345590
```

---
# Move longer again?

If we did, we'd be exactly where we were with the first join.

You  could make the argument it *might* make sense here

I'd still argue for *this* approach, not the cartesian product approach

More systematic, more predictable, and ultimately less error prone

---
# Another example
* Often you want to add summary info to your dataset.
* You can do this easily with by piping arguments

--
### ECLS-K reminder

```r
ecls
```

---
# Compute group means

```r
ecls %>%
  group_by(school_id) %>%
  summarize(sch_pre_math = mean(T1MSCALE))
```

```
## # A tibble: 515 x 2
##    school_id sch_pre_math
##  * <chr>            <dbl>
##  1 0001          20.45800
##  2 0002          14.977
##  3 0009          18.82
##  4 0013          42.321
##  5 0016          17.55100
##  6 0022          17.8465
##  7 0023          15.5050
##  8 0025          19.446
##  9 0026          16.866
## 10 0028          14.354
## # … with 505 more rows
```

---
# Join right within pipeline

```r
ecls %>%
  group_by(school_id) %>%
  summarize(sch_pre_math = mean(T1MSCALE)) %>%
  left_join(ecls) %>%
  select(school_id:k_type) # Just for space
```

```
## # A tibble: 984 x 5
##    school_id sch_pre_math child_id teacher_id k_type
##    <chr>            <dbl> <chr>    <chr>      <chr>
##  1 0001          20.45800 0001010C 0001T01    full-day
##  2 0002          14.977   0002010C 0002T01    half-day
##  3 0009          18.82    0009026C 0009T01    half-day
##  4 0009          18.82    0009014C 0009T02    half-day
##  5 0009          18.82    0009005C 0009T01    half-day
##  6 0013          42.321   0013003C 0013T01    full-day
##  7 0016          17.55100 0016004C 0016T01    half-day
##  8 0016          17.55100 0016009C 0016T01    half-day
##  9 0022          17.8465  0022005C 0022T01    half-day
## 10 0022          17.8465  0022014C 0022T03    half-day
## # … with 974 more rows
```

---
# Default join behavior
By default, the `*_join` functions will use all columns with common names as keys.

```r
flights2 <- flights %>%
  select(year:day, hour, origin, dest, tailnum, carrier)
flights2[1:2, ]
```

```
## # A tibble: 2 x 8
##    year month   day  hour origin dest  tailnum carrier
##   <int> <int> <int> <dbl> <chr>  <chr> <chr>   <chr>
## 1  2013     1     1     5 EWR    IAH   N14228  UA
## 2  2013     1     1     5 LGA    IAH   N24211  UA
```

```r
weather[1:2, ]
```

```
## # A tibble: 2 x 15
##   origin  year month   day  hour  temp  dewp humid wind_dir wind_speed
##   <chr>  <int> <int> <int> <int> <dbl> <dbl> <dbl>    <dbl>      <dbl>
## 1 EWR     2013     1     1     1 39.02 26.06 59.37      270   10.35702
## 2 EWR     2013     1     1     2 39.02 26.96 61.63      250    8.05546
## # … with 5 more variables: wind_gust <dbl>, precip <dbl>, pressure <dbl>,
## #   visib <dbl>, time_hour <dttm>
```

---

```r
left_join(flights2, weather)
```

```
## Joining, by = c("year", "month", "day", "hour", "origin")
```

```
## # A tibble: 336,776 x 18
##     year month   day  hour origin dest  tailnum carrier  temp  dewp    humid
##    <int> <int> <int> <dbl> <chr>  <chr> <chr>   <chr>   <dbl> <dbl>    <dbl>
##  1  2013     1     1     5 EWR    IAH   N14228  UA      39.02 28.04 64.43
##  2  2013     1     1     5 LGA    IAH   N24211  UA      39.92 24.98 54.81
##  3  2013     1     1     5 JFK    MIA   N619AA  AA      39.02 26.96 61.63
##  4  2013     1     1     5 JFK    BQN   N804JB  B6      39.02 26.96 61.63
##  5  2013     1     1     6 LGA    ATL   N668DN  DL      39.92 24.98 54.81
##  6  2013     1     1     5 EWR    ORD   N39463  UA      39.02 28.04 64.43
##  7  2013     1     1     6 EWR    FLL   N516JB  B6      37.94 28.04 67.21000
##  8  2013     1     1     6 LGA    IAD   N829AS  EV      39.92 24.98 54.81
##  9  2013     1     1     6 JFK    MCO   N593JB  B6      37.94 26.96 64.29
## 10  2013     1     1     6 LGA    ORD   N3ALAA  AA      39.92 24.98 54.81
## # … with 336,766 more rows, and 7 more variables: wind_dir <dbl>,
## #   wind_speed <dbl>, wind_gust <dbl>, precip <dbl>, pressure <dbl>,
## #   visib <dbl>, time_hour <dttm>
```

---
# Use only some vars?

If we were joining *flights2* and *planes*, we would not want to use the `year` variable in the join, because **it means different things in each dataset**.

```r
head(planes)
```

```
## # A tibble: 6 x 9
##   tailnum  year type                    manufacturer     model     engines
##   <chr>   <int> <chr>                   <chr>            <chr>       <int>
## 1 N10156   2004 Fixed wing multi engine EMBRAER          EMB-145XR       2
## 2 N102UW   1998 Fixed wing multi engine AIRBUS INDUSTRIE A320-214        2
## 3 N103US   1999 Fixed wing multi engine AIRBUS INDUSTRIE A320-214        2
## 4 N104UW   1999 Fixed wing multi engine AIRBUS INDUSTRIE A320-214        2
## 5 N10575   2002 Fixed wing multi engine EMBRAER          EMB-145LR       2
## 6 N105UW   1999 Fixed wing multi engine AIRBUS INDUSTRIE A320-214        2
## # … with 3 more variables: seats <int>, speed <int>, engine <chr>
```

---
# How?
Specify the variables with `by`

```r
left_join(flights2, planes, by = "tailnum")
```

```
## # A tibble: 336,776 x 16
##    year.x month   day  hour origin dest  tailnum carrier year.y
##     <int> <int> <int> <dbl> <chr>  <chr> <chr>   <chr>    <int>
##  1   2013     1     1     5 EWR    IAH   N14228  UA        1999
##  2   2013     1     1     5 LGA    IAH   N24211  UA        1998
##  3   2013     1     1     5 JFK    MIA   N619AA  AA        1990
##  4   2013     1     1     5 JFK    BQN   N804JB  B6        2012
##  5   2013     1     1     6 LGA    ATL   N668DN  DL        1991
##  6   2013     1     1     5 EWR    ORD   N39463  UA        2012
##  7   2013     1     1     6 EWR    FLL   N516JB  B6        2000
##  8   2013     1     1     6 LGA    IAD   N829AS  EV        1998
##  9   2013     1     1     6 JFK    MCO   N593JB  B6        2004
## 10   2013     1     1     6 LGA    ORD   N3ALAA  AA          NA
## # … with 336,766 more rows, and 7 more variables: type <chr>,
## #   manufacturer <chr>, model <chr>, engines <int>, seats <int>,
## #   speed <int>, engine <chr>
```

---
# Mismatched names?
* What if you had data to merge like this?

```r
names(schl)[1] <- "school_id"
schl
```

```
## # A tibble: 3 x 3
##   school_id stu_tch_ratio per_pupil_spending
##       <int>         <dbl>              <dbl>
## 1         1         22.05           15741.08
## 2         2         31.14           11732.24
## 3         3         24.87           13027.88
```

```r
stu
```

---
# Join w/mismatched names

```r
left_join(stu, schl, by = c("scid" = "school_id"))
```

---
class: inverse-blue center middle
# filtering joins

---
# Filtering joins
* `semi_join()` works just like `left_join` or `inner_join` but you don't actually add the variables.

* Let's filter classrooms with extremely high math pretest average scores.

---
# First, calculate averages

```r
av_pre_mth <- ecls %>%
    mutate(cut_high = mean(T1MSCALE) + 3*sd(T1MSCALE)) %>%
    group_by(teacher_id, k_type) %>%
    summarize(av_pre_mth = mean(T1MSCALE),
              cut_high = unique(cut_high))
av_pre_mth
```

```
## # A tibble: 707 x 4
## # Groups:   teacher_id [707]
##    teacher_id k_type   av_pre_mth cut_high
##    <chr>      <chr>         <dbl>    <dbl>
##  1 0001T01    full-day   20.45800 42.62333
##  2 0002T01    half-day   14.977   42.62333
##  3 0009T01    half-day   17.6475  42.62333
##  4 0009T02    half-day   21.165   42.62333
##  5 0013T01    full-day   42.321   42.62333
##  6 0016T01    half-day   17.55100 42.62333
##  7 0022T01    half-day   20.368   42.62333
##  8 0022T03    half-day   15.325   42.62333
##  9 0023T01    half-day   10.988   42.62333
## 10 0023T04    half-day   20.02200 42.62333
## # … with 697 more rows
```

---
Next, filter for means 3 standard deviations above the mean.

```r
extr_high <- av_pre_mth %>%
    ungroup() %>%
    filter(av_pre_mth > cut_high)
extr_high
```

```
## # A tibble: 3 x 4
##   teacher_id k_type   av_pre_mth cut_high
##   <chr>      <chr>         <dbl>    <dbl>
## 1 0078T04    half-day    45.75   42.62333
## 2 0663T01    full-day    42.8455 42.62333
## 3 0944T03    half-day    45.371  42.62333
```

---
Finally, use `semi_join` to show the full data for these cases

```r
semi_join(ecls, extr_high)
```

```
## # A tibble: 4 x 33
##   child_id teacher_id school_id k_type   school_type sex
##   <chr>    <chr>      <chr>     <chr>    <chr>       <chr>
## 1 0944017C 0944T03    0944      half-day private     female
## 2 0663006C 0663T01    0663      full-day private     male
## 3 0663012C 0663T01    0663      full-day private     female
## 4 0078020C 0078T04    0078      half-day public      female
## # … with 27 more variables: ethnic <chr>, famtype <chr>, numsibs <dbl>,
## #   SES_cont <dbl>, SES_cat <chr>, age <dbl>, T1RSCALE <dbl>,
## #   T1MSCALE <dbl>, T1GSCALE <dbl>, T2RSCALE <dbl>, T2MSCALE <dbl>,
## #   T2GSCALE <dbl>, IRTreadgain <dbl>, IRTmathgain <dbl>, IRTgkgain <dbl>,
## #   T1ARSLIT <dbl>, T1ARSMAT <dbl>, T1ARSGEN <dbl>, T2ARSLIT <dbl>,
## #   T2ARSMAT <dbl>, T2ARSGEN <dbl>, ARSlitgain <dbl>, ARSmathgain <dbl>,
## #   ARSgkgain <dbl>, testdate1 <date>, testdate2 <date>, elapse <dbl>
```

---
# Filtering joins
`anti_join()` does the opposite of `semi_join`, keeping any rows that do
**not** match.

```r
nrow(ecls)
```

```
## [1] 984
```

```r
extr_low_ecls <- anti_join(ecls, extr_high)
nrow(extr_low_ecls)
```

```
## [1] 980
```

---
# Why is this so beneficial?
* Sometimes the boolean logic for `filter` can be overly complicated.

--
* Instead, create a data frame that has only the groups you want, and
`semi_join` it with your original data

--
* Alternatively, create a data frame that has all .bolder[but] the values you
want.

---
class: inverse-red middle
# Stop words
### One more quick example
This one is probs more realistic

---
# Jane Austen Books

```r
# install.packages(c("tidytext", "janeaustenr"))
library(tidytext)
library(janeaustenr)
austen_books()
```

```
## # A tibble: 73,422 x 2
##    text                    book
##  * <chr>                   <fct>
##  1 "SENSE AND SENSIBILITY" Sense & Sensibility
##  2 ""                      Sense & Sensibility
##  3 "by Jane Austen"        Sense & Sensibility
##  4 ""                      Sense & Sensibility
##  5 "(1811)"                Sense & Sensibility
##  6 ""                      Sense & Sensibility
##  7 ""                      Sense & Sensibility
##  8 ""                      Sense & Sensibility
##  9 ""                      Sense & Sensibility
## 10 "CHAPTER 1"             Sense & Sensibility
## # … with 73,412 more rows
```

---
# Get words

```r
austen_books() %>%
  unnest_tokens(word, text)
```

```
## # A tibble: 725,055 x 2
##    book                word
##    <fct>               <chr>
##  1 Sense & Sensibility sense
##  2 Sense & Sensibility and
##  3 Sense & Sensibility sensibility
##  4 Sense & Sensibility by
##  5 Sense & Sensibility jane
##  6 Sense & Sensibility austen
##  7 Sense & Sensibility 1811
##  8 Sense & Sensibility chapter
##  9 Sense & Sensibility 1
## 10 Sense & Sensibility the
## # … with 725,045 more rows
```

---
# Count words

```r
austen_books() %>%
  unnest_tokens(word, text) %>%
  count(word, sort = TRUE)
```

```
## # A tibble: 14,520 x 2
##    word      n
##    <chr> <int>
##  1 the   26351
##  2 to    24044
##  3 and   22515
##  4 of    21178
##  5 a     13408
##  6 her   13055
##  7 i     12006
##  8 in    11217
##  9 was   11204
## 10 it    10234
## # … with 14,510 more rows
```

---
# Plot top 15 words

```r
austen_books() %>%
  unnest_tokens(word, text) %>%
  count(word, sort = TRUE) %>%
  mutate(word = fct_reorder(word, n)) %>%
  slice(1:15) %>%
  ggplot(aes(word, n)) +
  geom_col() +
  coord_flip()
```

---

![](w3p2_files/figure-html/count-words-plot1-eval-1.png)

---
# Stop words

```r
stop_words
```

```
## # A tibble: 1,149 x 2
##    word        lexicon
##    <chr>       <chr>
##  1 a           SMART
##  2 a's         SMART
##  3 able        SMART
##  4 about       SMART
##  5 above       SMART
##  6 according   SMART
##  7 accordingly SMART
##  8 across      SMART
##  9 actually    SMART
## 10 after       SMART
## # … with 1,139 more rows
```

---

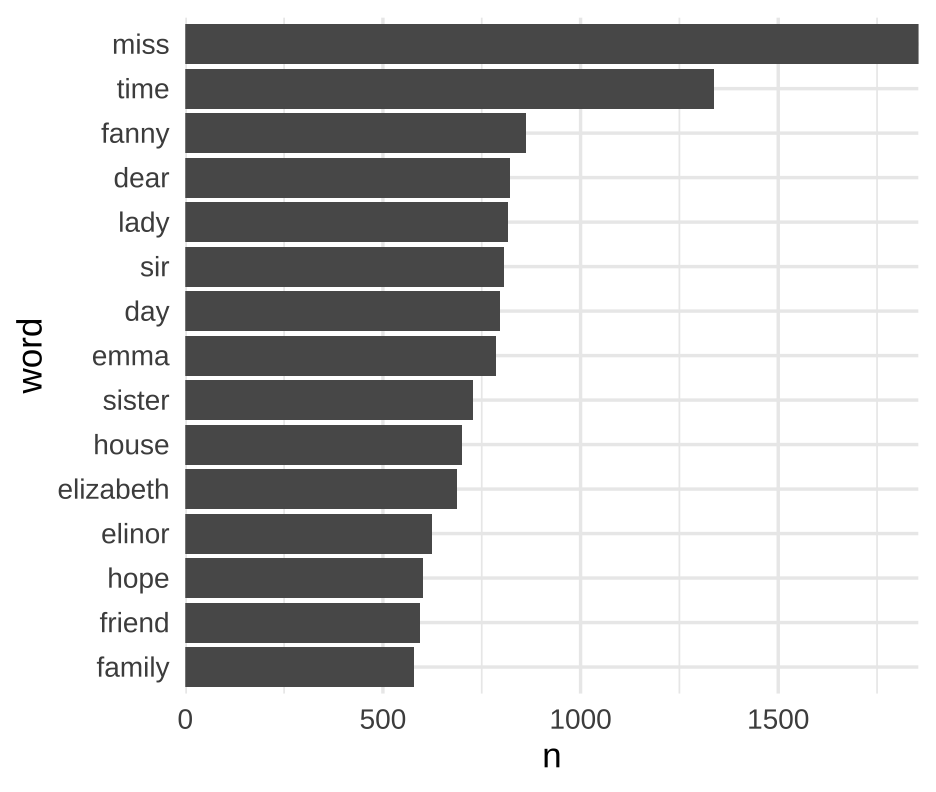

# Remove stop words

```r
austen_books() %>%
  unnest_tokens(word, text) %>%
* anti_join(stop_words) %>%
  count(word, sort = TRUE)
```

```
## # A tibble: 13,914 x 2
##    word       n
##    <chr>  <int>
##  1 miss    1855
##  2 time    1337
##  3 fanny    862
##  4 dear     822
##  5 lady     817
##  6 sir      806
##  7 day      797
##  8 emma     787
##  9 sister   727
## 10 house    699
## # … with 13,904 more rows
```

---

![](w3p2_files/figure-html/count-words-plot2-1.png)

---

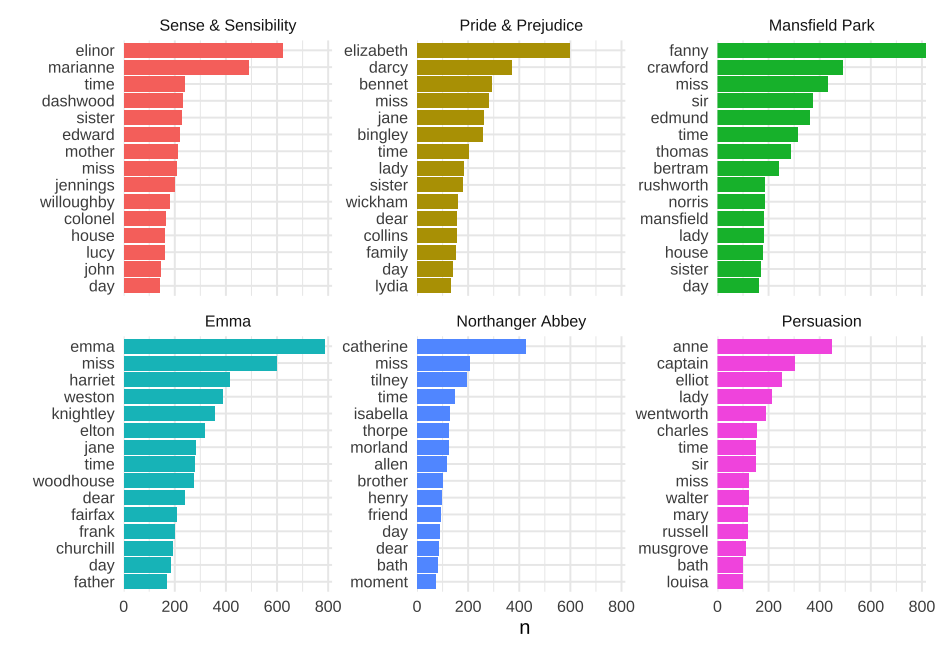

# By book

![](w3p2_files/figure-html/count-words-plot3-1.png)
---
class: inverse-green middle

# Wrapping up
* Homework 1 assigned today
  + Be careful about keys. Likely to be rather tricky.
* Next time: Visual perception
